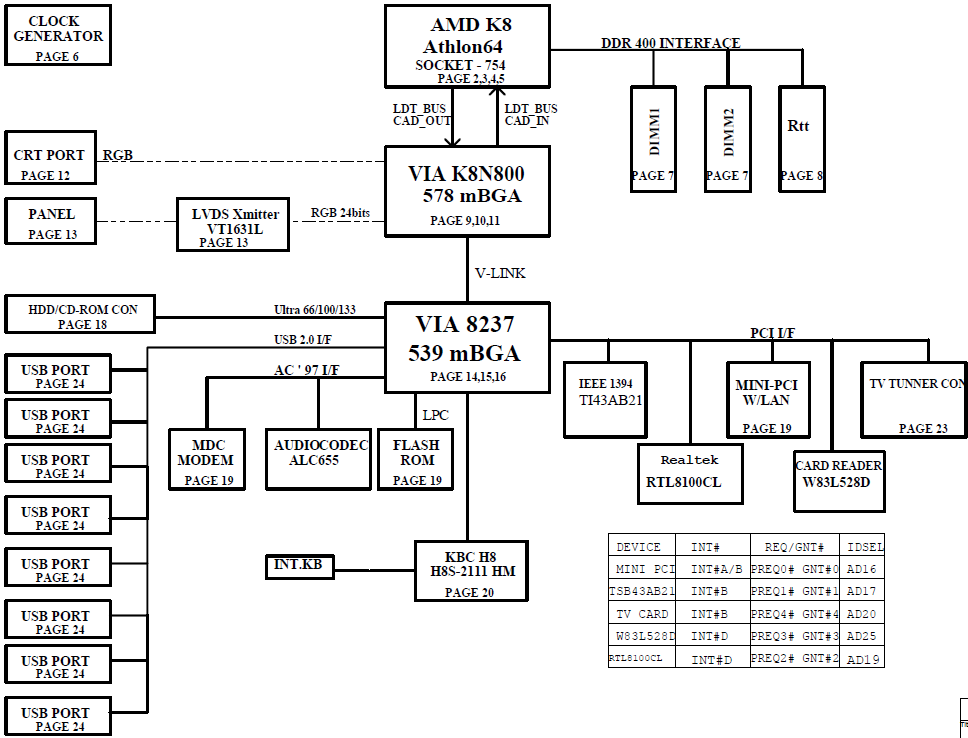

Clevo L-series L570W, Motherboard Schematic diagram

Click on picture to enlarge	Price: US $11.25 Major components: CPU : AMD K8 Athlon64 (SOCKET - 754) Chipset :VIA K8N800 / VIA 8237 Video: UMA KBC(Embeded Controller),SIO :H8S-2111 HM Known motherboard part numbers: 71-L570W0-D05 File type : PDF Language : English

Click on picture to enlarge

Price: US $11.25

Major components:

CPU : AMD K8 Athlon64 (SOCKET - 754)
Chipset :VIA K8N800 / VIA 8237
Video: UMA
KBC(Embeded Controller),SIO :H8S-2111 HM

Known motherboard part numbers:

71-L570W0-D05

File type : PDF
Language : English

Updated: 13-07-2010
