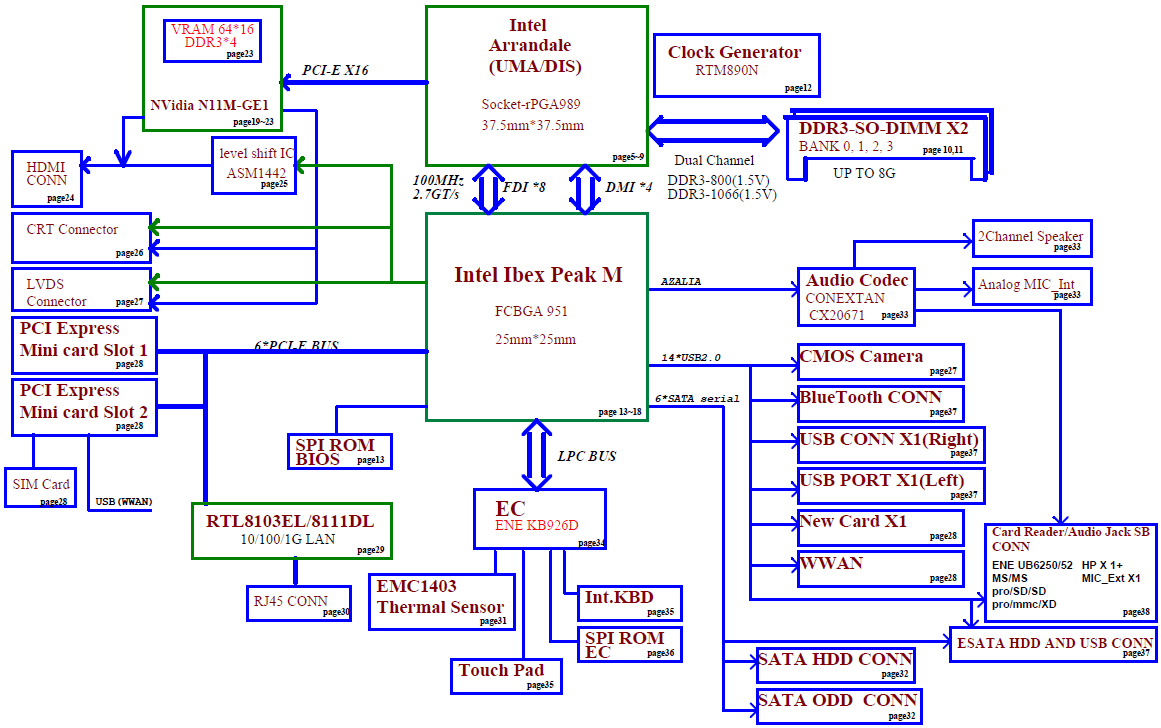

Compal OEM LA-5751P NIWE1, Laptop Motherboard Schematic diagram

Click on picture to enlarge	Price: US $15.00 Included: Major components CPU : Mobile Arrandale Chipset : Intel PCH(Ibex Peak-M) Video: UMA or DIS (NVidia N11M-GE1) KBC(Embeded Controller),SIO :KB926 File type : PDF Language : English

Click on picture to enlarge

Price: US $15.00

Included:

Major components

CPU : Mobile Arrandale
Chipset : Intel PCH(Ibex Peak-M)
Video: UMA or DIS (NVidia N11M-GE1)
KBC(Embeded Controller),SIO :KB926

File type : PDF
Language : English

Updated: 16-06-2010
