RoverBook Navigator V211 (NV211), Notebook Motherboard Schematic diagram
|
|
Price: US $15.00 CPU :Intel Merom Chipset :SiSM671MX / SiS968 Video :UMA Clock Generator :ICS9LPR600 Audio Codec :ALC883 Audio Amplifier :APA2020 + TPA4411 KBC(Embeded Controller),SIO :ITE 8512E LAN Controller :RTL8201CL Card BUS,IEEE_1394,etc .....:EnE MR510 <Power System> MB39A119 SC486 SC413 APL5913 LTC3728LXCUH SC452 Total Pages :37 File type : PDF Language : English |
|---|

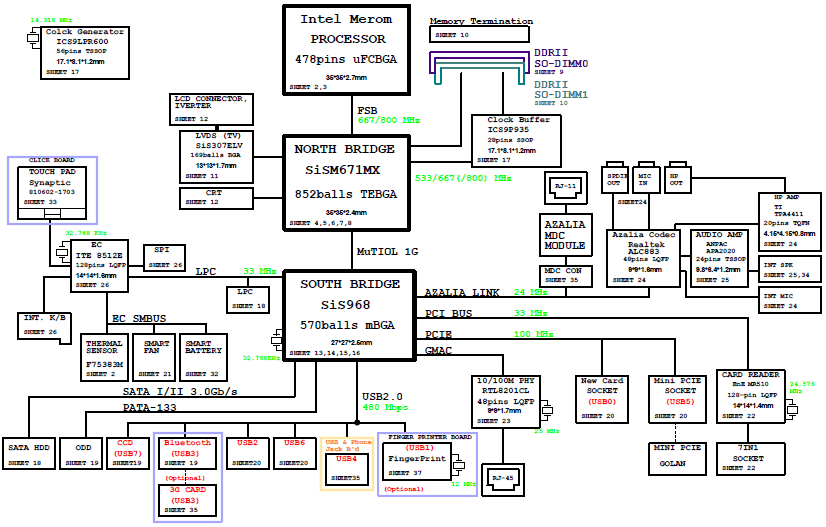

Click on picture to enlarge
