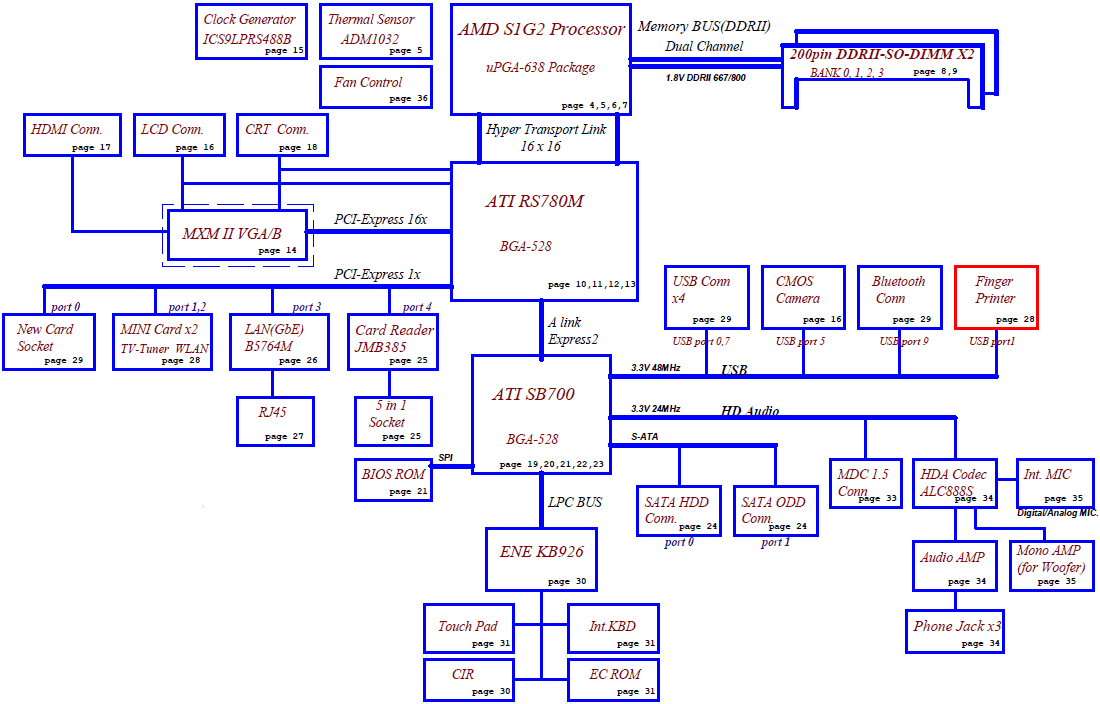

Acer Aspire 5530, Motherboard schematic diagram Schematic diagram

Click on picture to enlarge	Price: US $22.50 Major components CPU :AMD S1G2 North Bridge :ATI RS780M South Bridge :ATI SB700 VGA :UMA \ MXM II VGA/B Clock Generator :ICS9LPRS488B Thermal Sensor :ADM1032 Audio Codec :ALC888S Audio Amplifier :APA2057A,APA3011XA KBC(Embeded Controller),SIO :ENE KB926 LAN Controller :B5764M CardBUS/1394/Cardreader Contr.:JMB385 <Power System> ISL6265IRZ APL5915KAI APL5915KAI APL5912 TPS51117RGYR ISL6228HRTZ BQ24751ARHDR ISL6237IRZ Total Pages : 50 File tipe : PDF Language : English

Click on picture to enlarge

Price: US $22.50

Major components

CPU :AMD S1G2
North Bridge :ATI RS780M
South Bridge :ATI SB700
VGA :UMA \ MXM II VGA/B
Clock Generator :ICS9LPRS488B
Thermal Sensor :ADM1032
Audio Codec :ALC888S
Audio Amplifier :APA2057A,APA3011XA
KBC(Embeded Controller),SIO :ENE KB926
LAN Controller :B5764M
CardBUS/1394/Cardreader Contr.:JMB385

<Power System>

ISL6265IRZ
APL5915KAI
APL5915KAI
APL5912
TPS51117RGYR
ISL6228HRTZ
BQ24751ARHDR
ISL6237IRZ

Total Pages : 50
File tipe : PDF
Language : English

Updated: 08-01-2010
