Compal OEM LA-3631P IALAA, Laptop Motherboard Schematic diagram

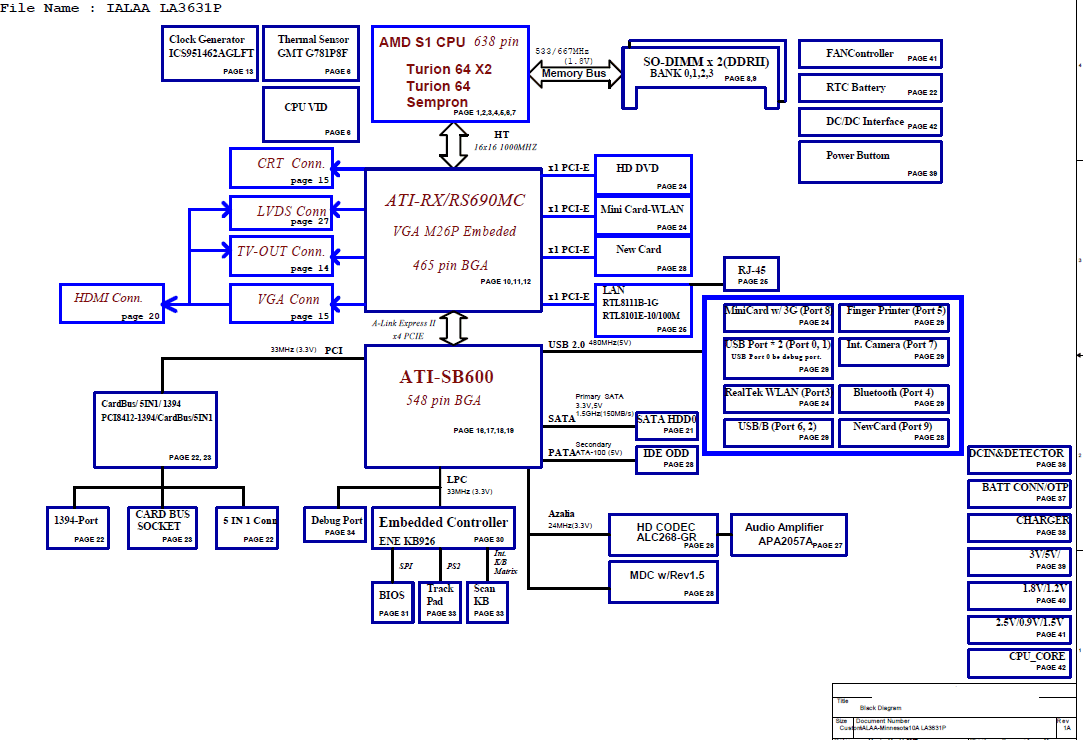

Click on picture to enlarge	Price: US $18.00 Project name < LA-3631P IALAA > revision(s): 1.A Major components CPU : AMD S1 (Turion 64 X2 / Turion 64 / Sempron ) Thermal Sensor :GMT G781P8F Chipset : ATI RS690MC// ATI-SB600 Video: VGA M26P Embeded (ATI Radeon X1200) Clock Generator :ICS951462AGLFT Audio Codec : ALC268-GR Audio Amplifier :APA2057A KBC(Embeded Controller),SIO : ENE KB926 LAN Controller :RTL8111B-1G or RTL8101E-10/100M Card BUS etc...:PCI8412 <Power System> MAX8774 APL5331 APL5331 G965 ISL6227 TPS51120 ISL6251 Total Pages :45 File type : PDF Language : English

Click on picture to enlarge

Price: US $18.00

Project name

< LA-3631P IALAA >

revision(s): 1.A

Major components

CPU : AMD S1 (Turion 64 X2 / Turion 64 / Sempron )
Thermal Sensor :GMT G781P8F
Chipset : ATI RS690MC// ATI-SB600
Video: VGA M26P Embeded (ATI Radeon X1200)
Clock Generator :ICS951462AGLFT
Audio Codec : ALC268-GR
Audio Amplifier :APA2057A
KBC(Embeded Controller),SIO : ENE KB926
LAN Controller :RTL8111B-1G or RTL8101E-10/100M
Card BUS etc...:PCI8412

<Power System>

MAX8774
APL5331
APL5331
G965
ISL6227
TPS51120
ISL6251

Total Pages :45
File type : PDF
Language : English

Updated: 28-04-2010
