Compal OEM LA-1541 BTS88, Laptop Motherboard Schematic diagram

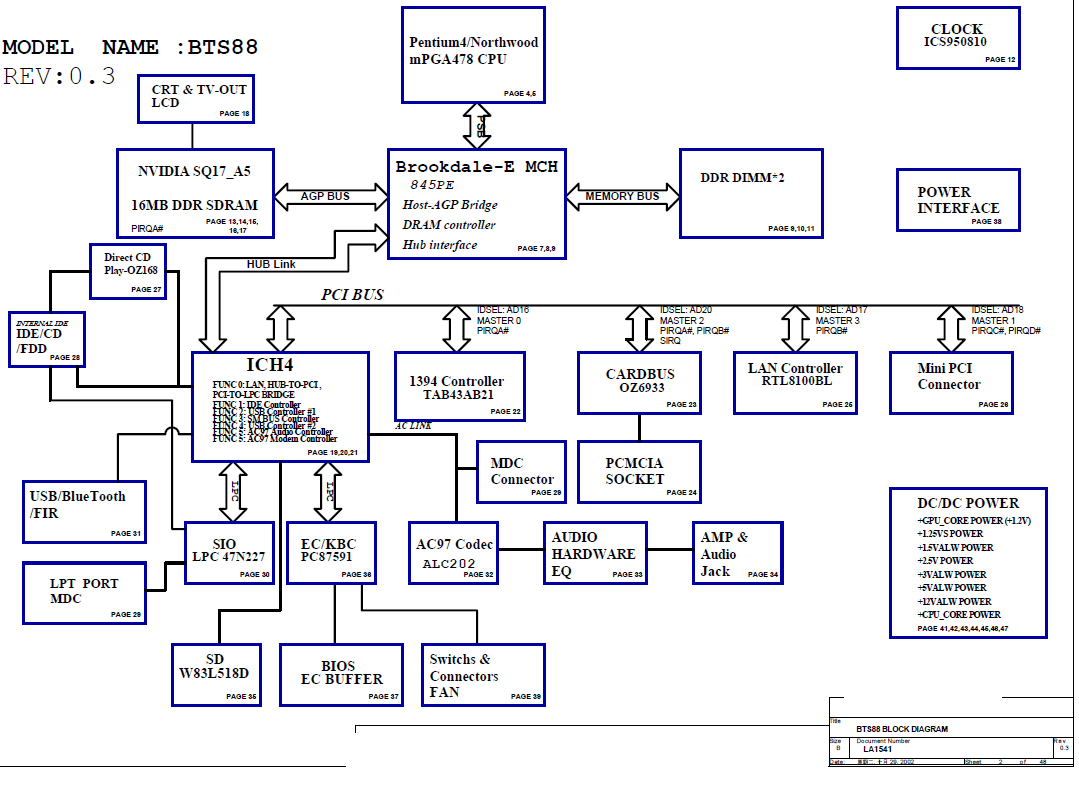

Click on picture to enlarge	Price: US $9.75 Project name < LA-1541 BTS88 > revision(s): 0.3 Intel Pentium 4 Processor in the 478-pin Package with 845PE / ICH4 / NVIDIA SQ17 chipset File type : PDF Language : English

Click on picture to enlarge

Price: US $9.75

Project name

< LA-1541 BTS88 >

revision(s): 0.3

Intel Pentium 4 Processor in the 478-pin Package
with 845PE / ICH4 / NVIDIA SQ17 chipset

File type : PDF
Language : English

Updated: 14-04-2010
