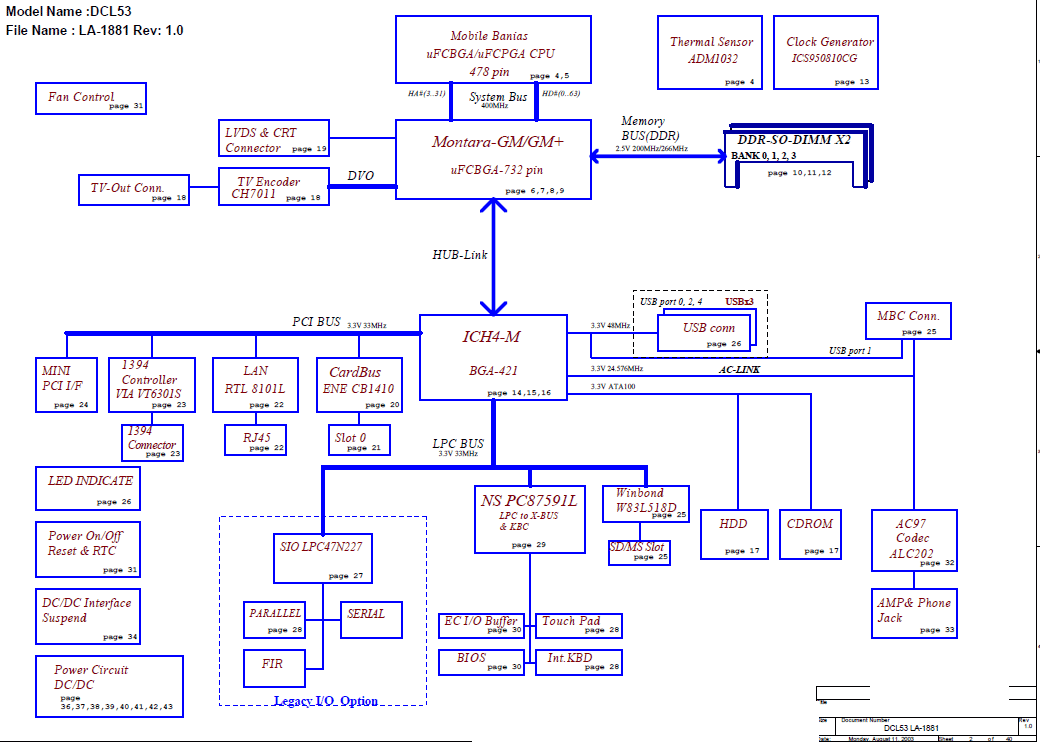

Compal OEM LA-1881 DCL53, Laptop Motherboard Schematic diagram
Click on picture to enlarge |
Project name < LA-1881 DCL53 > revision(s): 1.0 Banias uFCBGA/uFCPGA Package with Montara-GM Core Logic File type : PDF Language : English |
---|
