Toshiba Satellite L455D-SP5012M, Laptop Motherboard Schematic diagram

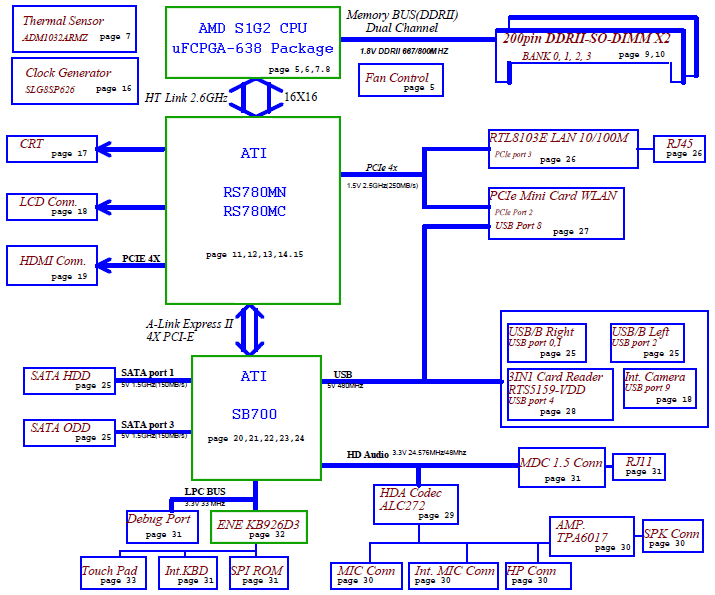

Click on picture to enlarge	Price: US $26.25 Included: * Power Map Major components CPU :AMD S1G2 North Bridge :ATI RS780MN or RS780MC South Bridge :ATI SB700 VGA :UMA Clock Generator :SLG8SP626 Thermal Sensor :ADM1032ARMZ Audio Codec :ALC272 Audio Amplifier :TPA6017 KBC(Embeded Controller),SIO :ENE KB926D3 LAN Controller :RTL8103E CardBUS/1394/Cardreader Contr.:RTS5159-VDD <Power System> ISL6265HRTZ APL5331KAC APL5331KAC TPS51117RGYR APL5508-25DC TPS51124RGER TPS51125RGER BQ24751ARHDR Total Pages :45 File tipe : PDF Language : English

Click on picture to enlarge

Price: US $26.25

Included:

* Power Map

Major components

CPU :AMD S1G2
North Bridge :ATI RS780MN or RS780MC
South Bridge :ATI SB700
VGA :UMA
Clock Generator :SLG8SP626
Thermal Sensor :ADM1032ARMZ
Audio Codec :ALC272
Audio Amplifier :TPA6017
KBC(Embeded Controller),SIO :ENE KB926D3
LAN Controller :RTL8103E
CardBUS/1394/Cardreader Contr.:RTS5159-VDD

<Power System>

ISL6265HRTZ
APL5331KAC
APL5331KAC
TPS51117RGYR
APL5508-25DC
TPS51124RGER
TPS51125RGER
BQ24751ARHDR

Total Pages :45
File tipe : PDF
Language : English

Updated: 11-04-2010
