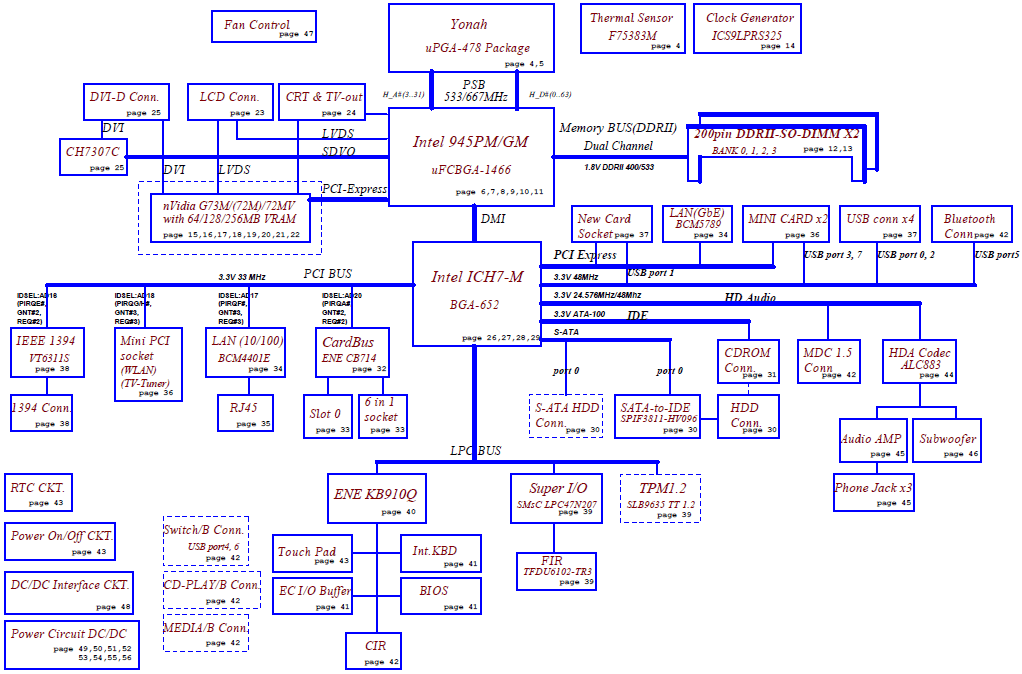

Compal OEM LA-2921P HBL50, Laptop Motherboard Schematic diagram

Click on picture to enlarge

Price: US $15.00

Also included:

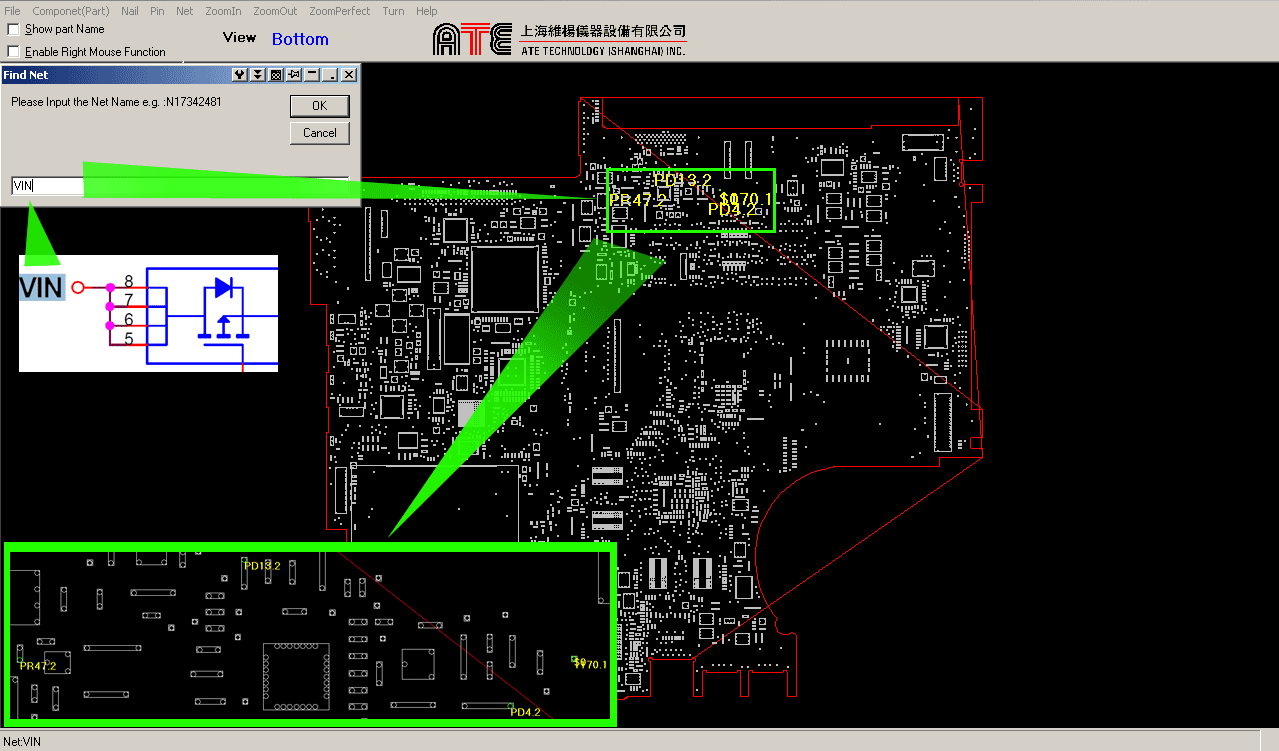

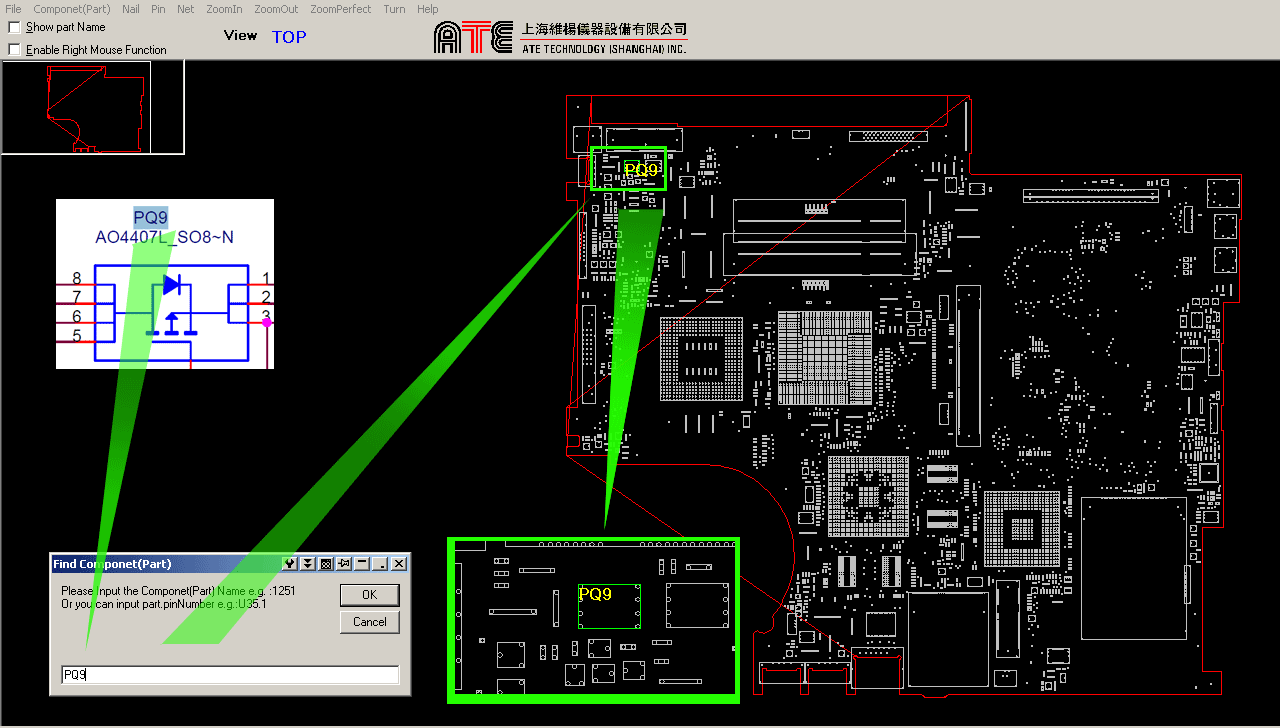

** "Board View" file and Viewer . This tool allows to find any component,
pin or signal (test point) on the motherboard in a few seconds.
(to see picture with a better quality - open it up in a new window)
Project name

< LA-2921P HBL50 >

revision(s): 0.2 , 0.3 , 4.0

Intel Yonah Processor with 945GM/945PM + DDRII + ICH7M (With nVIDIA G73M/72MV)

File type : PDF
Language : English
Updated: 11-07-2011
