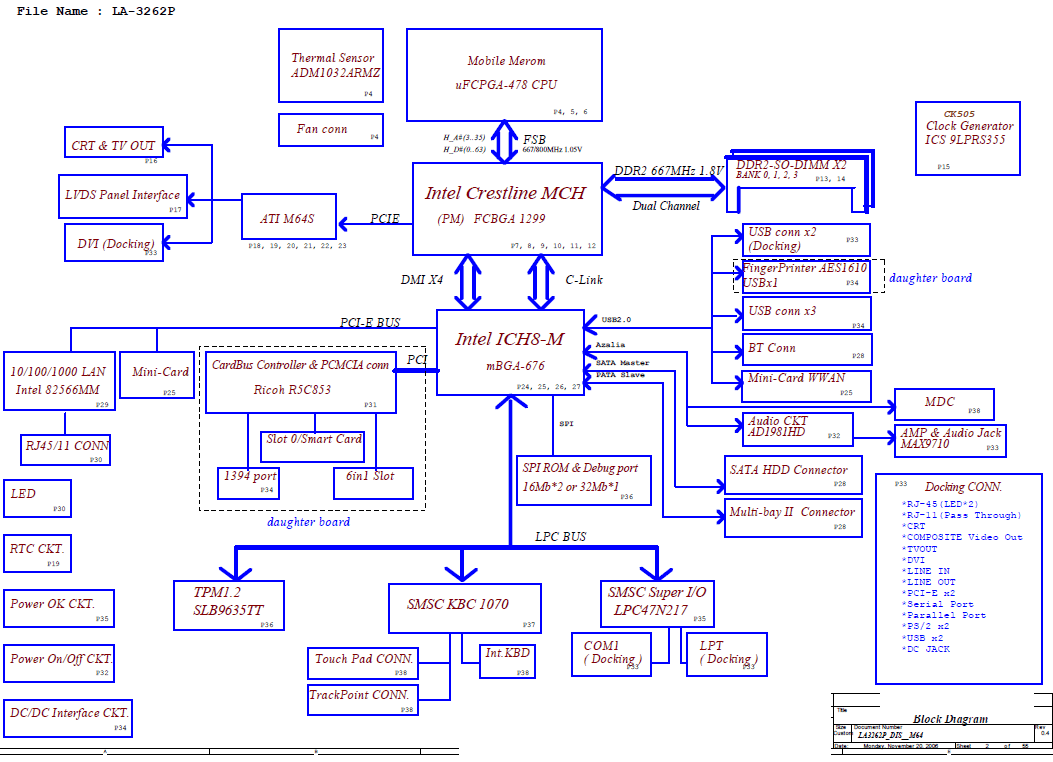

Compal OEM LA-3262P IBT00, Laptop Motherboard Schematic diagram
Click on picture to enlarge |
Project name < LA-3262P IBT00 > revision(s): 0.4 , 0.5 , 0.6 , 1.0 , 1.A Mobile Merom uFCPGA with Intel Crestline + ICH8-M core logic + Discrete VGA (M64) File type : PDF Language : English |
---|
