Compal OEM LA-3541P IFTxx (IFT00 / IFT01 / IFL90 / IFT91), Laptop Motherboard Schematic diagram

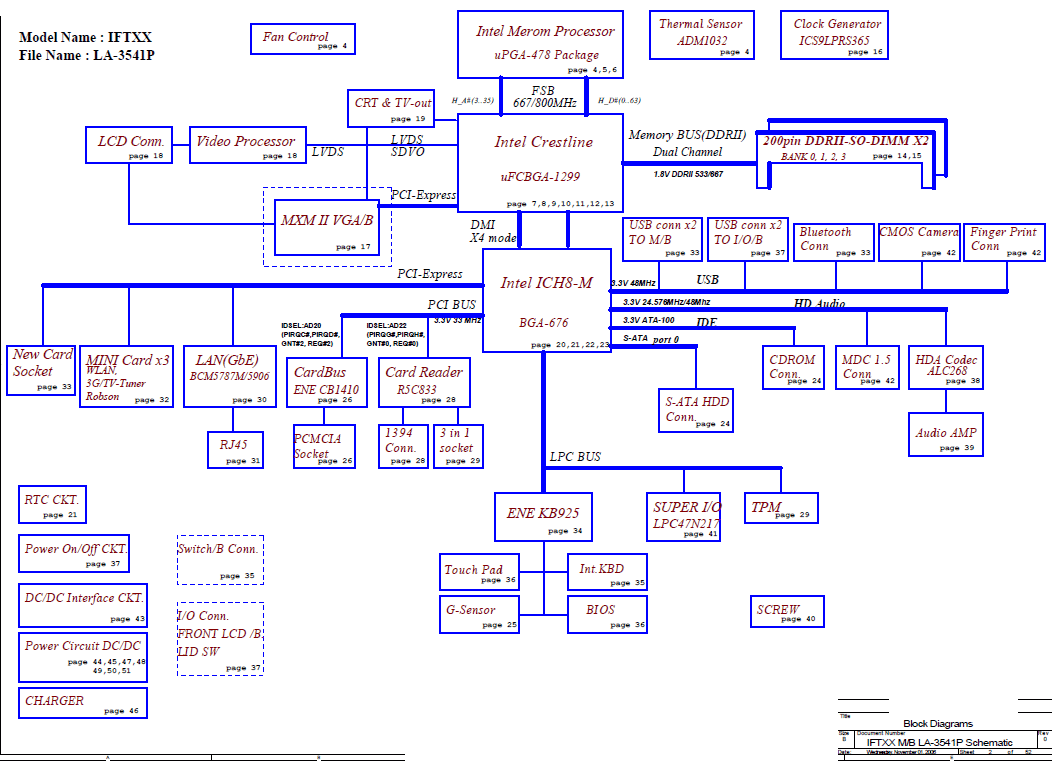

Click on picture to enlarge	Price: US $15.00 Project name < LA-3541P IFTxx (IFT00 / IFT01 / IFL90 / IFT91) > revision(s): 0.1 , 0.3 Intel Merom Processor with Crestline + DDRII + ICH8M (With nVIDIA MXM/B) File type : PDF Language : English

Click on picture to enlarge

Price: US $15.00

Project name

< LA-3541P IFTxx (IFT00 / IFT01 / IFL90 / IFT91) >

revision(s): 0.1 , 0.3

Intel Merom Processor with Crestline + DDRII + ICH8M (With nVIDIA MXM/B)

File type : PDF
Language : English

Updated: 11-04-2010
