Compal OEM LA-4171P JALB0, Laptop Motherboard Schematic diagram

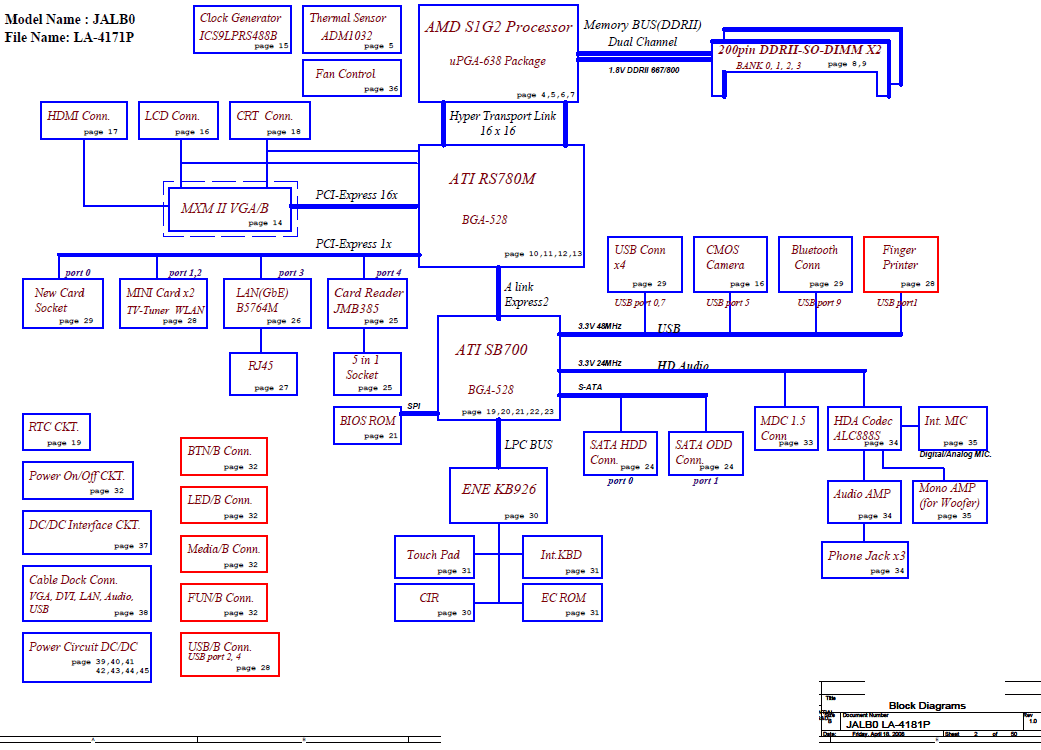

Click on picture to enlarge	Price: US $17.25 Project name < LA-4171P JALB0 > revision(s): 0.2 , 1.0 , 2.0 AMD Griffin Processor with RS780M+SB700 (With ATI MXM/B) Total Pages : 50 File type : PDF Language : English

Click on picture to enlarge

Price: US $17.25

Project name

< LA-4171P JALB0 >

revision(s): 0.2 , 1.0 , 2.0

AMD Griffin Processor with RS780M+SB700 (With ATI MXM/B)

Total Pages : 50
File type : PDF
Language : English

Updated: 10-04-2010
