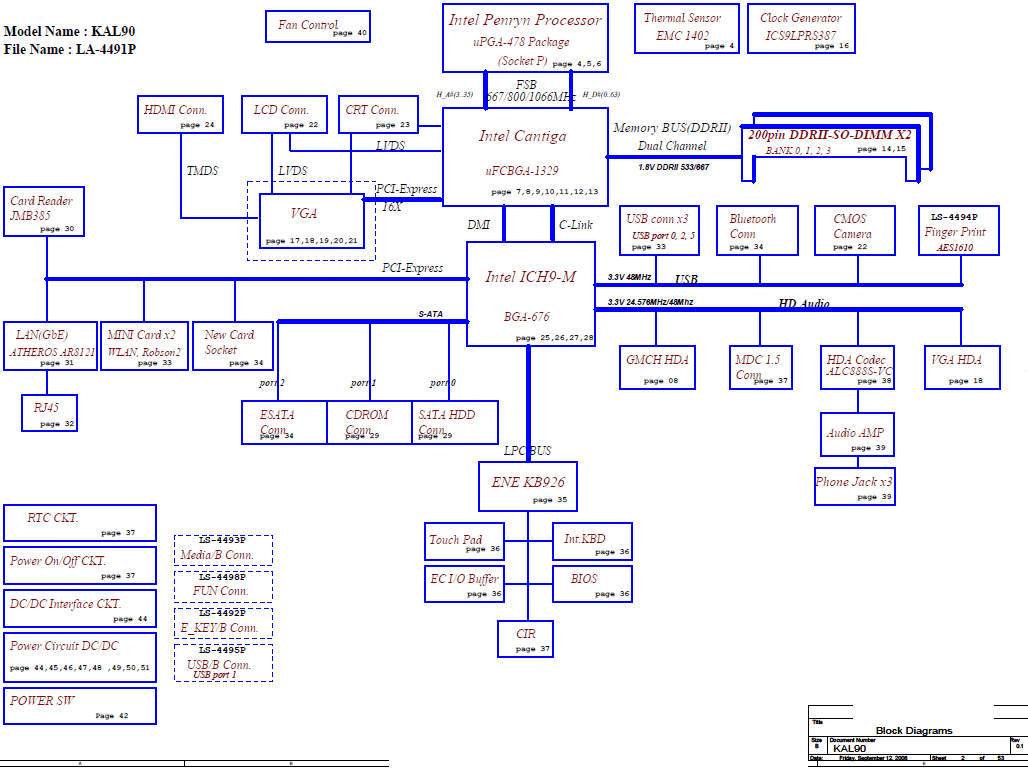

Compal OEM LA-4491P KAL90 (DDR2), Laptop Motherboard Schematic diagram
Click on picture to enlarge |
Project name LA-4491P KAL90 (DDR2) revision(s): 0.2 , 1.0 Intel Penryn Processor with Cantiga + DDRII + ICH9M Total Pages : 53 File type : PDF Language : English |
---|
