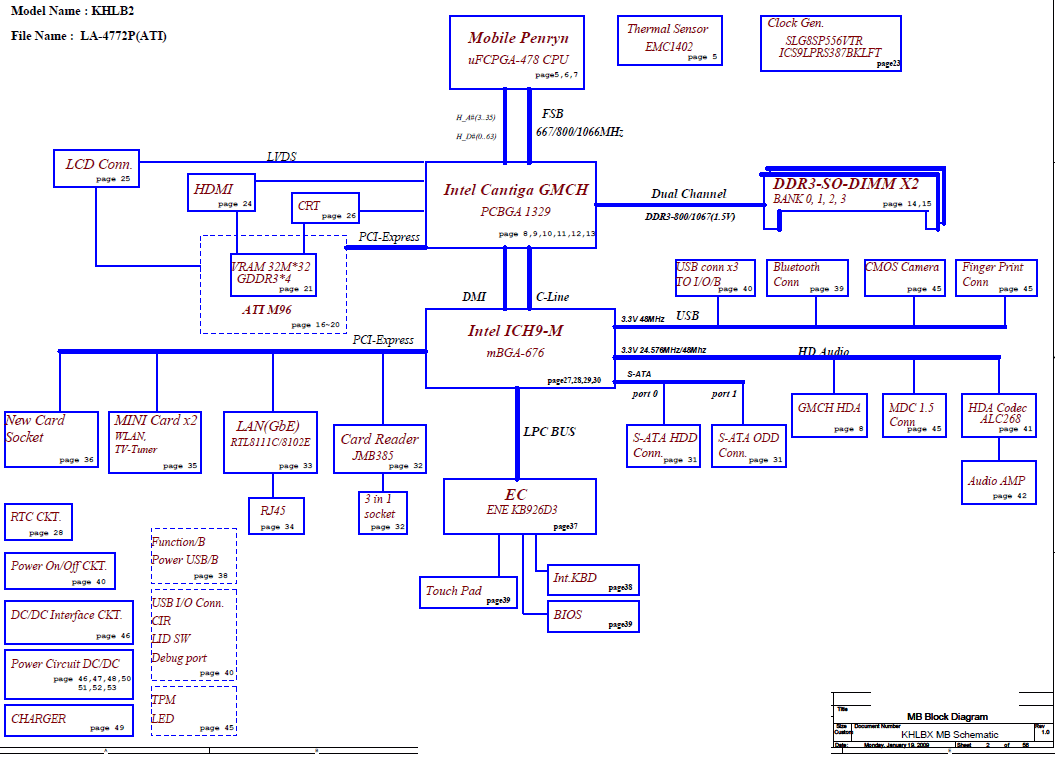

Compal OEM LA-4772P KHLB2 (KHLBx), Laptop Motherboard Schematic diagram

Click on picture to enlarge	Price: US $18.75 Project name LA-4772P KHLB2(ATI VGA Card) / (KHLBx) revision(s): 1.0 Intel Mobile Penryn uFCPGA with Cantiga_PM + DDRIII + ICH9M Total Pages : 40 File type : PDF Language : English

Click on picture to enlarge

Price: US $18.75

Project name

LA-4772P KHLB2(ATI VGA Card) / (KHLBx)

revision(s): 1.0

Intel Mobile Penryn uFCPGA with Cantiga_PM + DDRIII + ICH9M

Total Pages : 40
File type : PDF
Language : English

Updated: 10-04-2010
