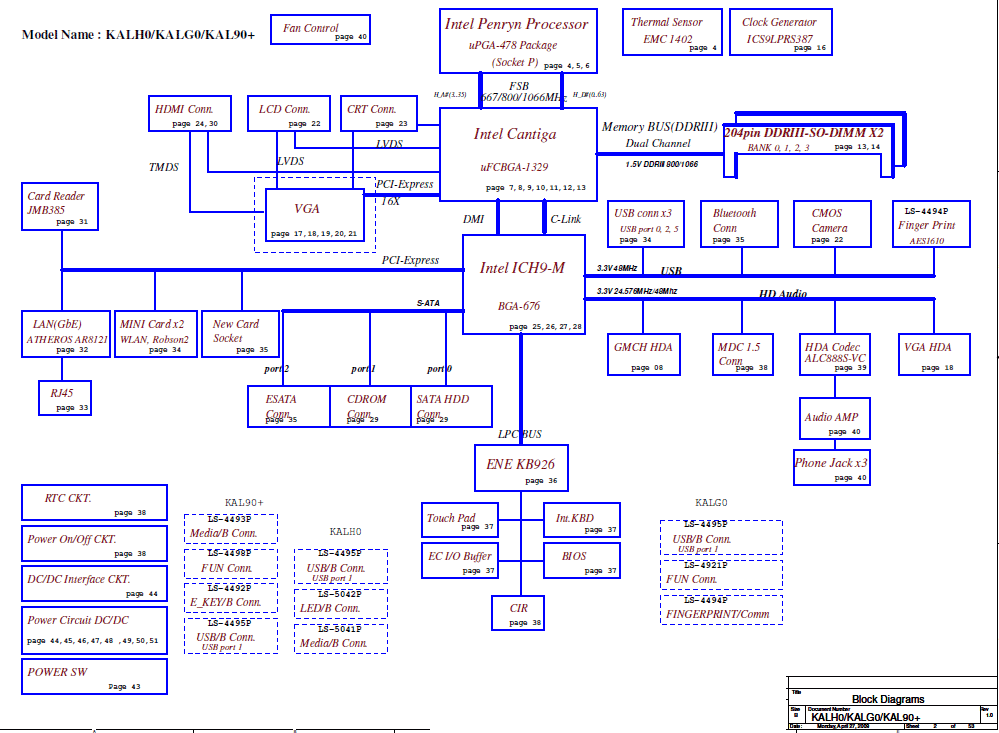

Compal OEM LA-....P KALH0 / KAL90+ / KALG0 (DDR3 !), Laptop Motherboard Schematic diagram
Click on picture to enlarge |
Project name LA-....P KALH0 / KAL90+ / KALG0 revision(s): 1.0 Intel Penryn Processor with Cantiga + DDRIII + ICH9M ATTENTION !!! For systems with DDR3 ONLY ! Total Pages : 53 File type : PDF Language : English |
---|
