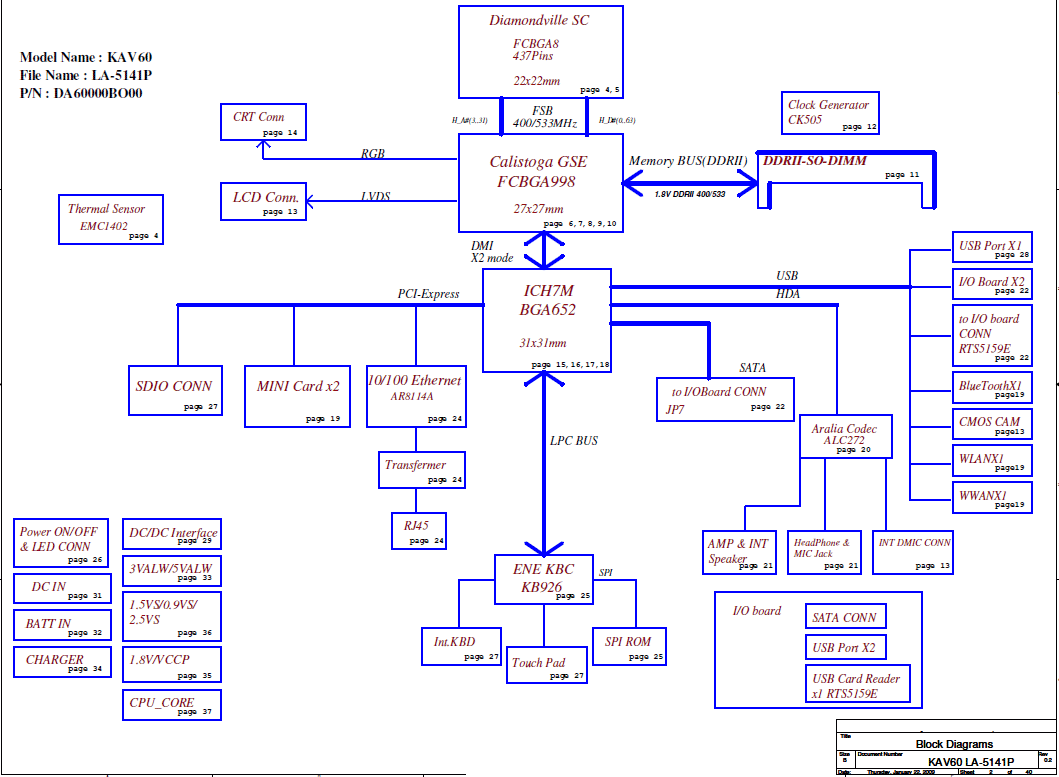

Compal OEM LA-5141P KAV60, Laptop Motherboard Schematic diagram

Click on picture to enlarge	Price: US $18.75 Project name LA-5141P KAV60 revision(s): 1.0 Intel Diamondville Processor with Calistoga(945GSE) + DDRII + ICH7M Total Pages : 40 File type : PDF Language : English

Click on picture to enlarge

Price: US $18.75

Project name

LA-5141P KAV60

revision(s): 1.0

Intel Diamondville Processor with Calistoga(945GSE) + DDRII + ICH7M

Total Pages : 40
File type : PDF
Language : English

Updated: 13-04-2010
