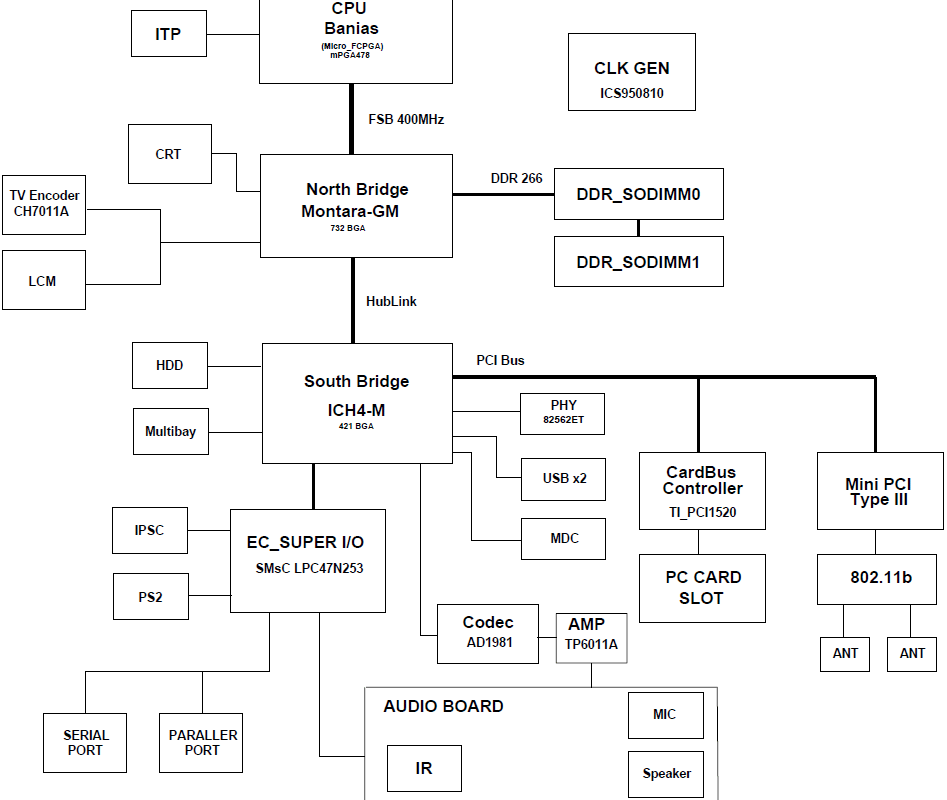

Toshiba Tecra TE2300, Laptop Motherboard Schematic diagram
|
|
Price: US $9.75 CPU :Intel Pentiim Mobile Banias Thermal sensor :ADM1032AR Chipset :Intel Montara-GM // ICH4-M VGA :UMA Clock Generator :ICS950810 Audio Codec :AD1981 Audio Amplifier :TP6011A KBC(Embeded Controller),SIO :SMsC LPC47N253 LAN Controller :82562ET CardBUS/1394/Cardreader Contr.:PCI1520GHK <Power System> SC1486 MAX1715 LM2729 LM2724 LM2724 SC1565 SC1565 MAX6308 Total Pages : 53 File tipe : PDF Language : English |
|---|
Click on picture to enlarge
