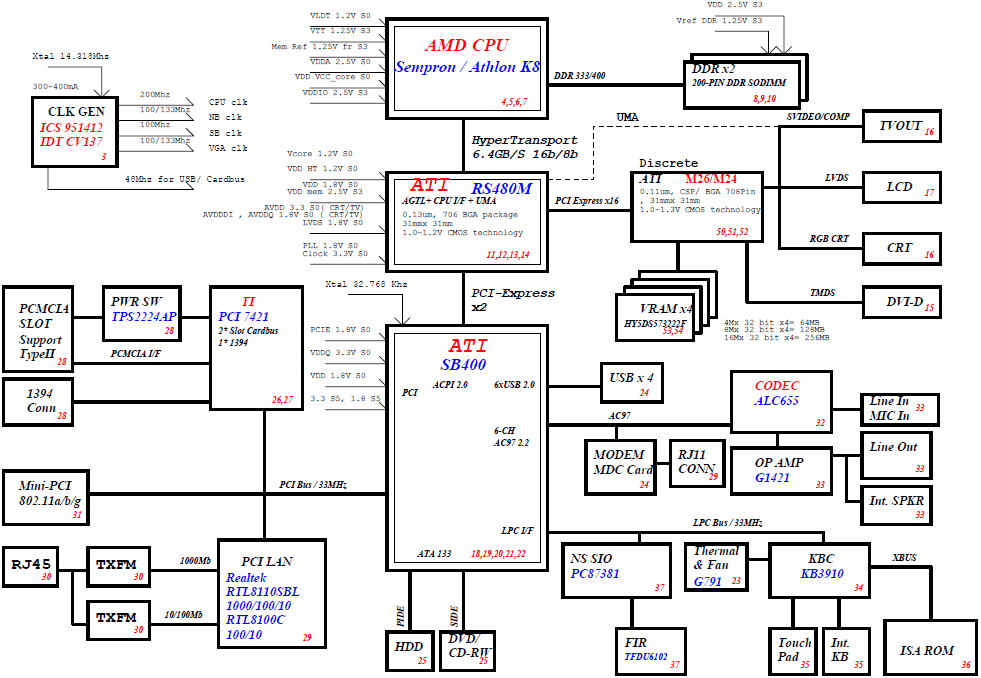

Acer Aspire 5010, Motherboard schematic diagram Schematic diagram
|
|
Price: US $9.75 CPU :AMD Sempron / Athlon K8 North Bridge :ATI RS480M South Bridge :ATI SB400 VGA :UMA \ ATI M26/M24 Clock Generator :ICS 951412 (IDT CV137) Thermal Sensor :G791 Audio Codec :ALC655 Audio Amplifier :G1421 KBC(Embeded Controller),SIO :KB3910,PC87381 LAN Controller :RTL8110SBL (RTL8100C) CardBUS/1394/Cardreader Contr.: <Power System> MAX1909ETI MAX1999EEI TPS 5130 ISL6559CR LP2951ACM APL5331KAC Total Pages : 56 File tipe : PDF Language : English |
|---|
Click on picture to enlarge
