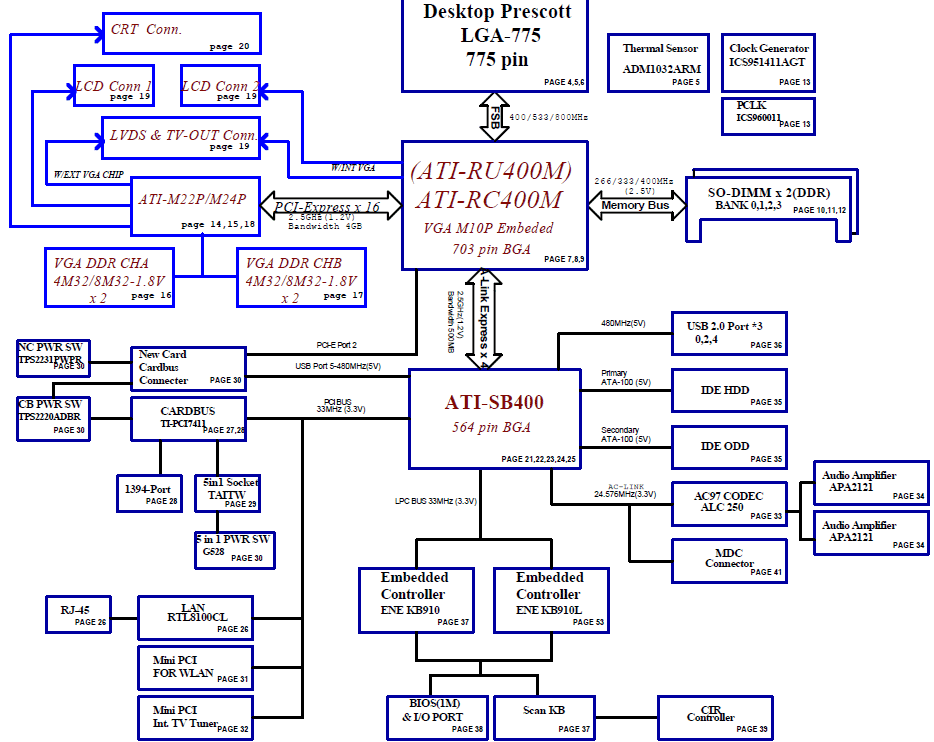

Toshiba Satellite P30-S701TD, Laptop Motherboard Schematic diagram
|
|
Price: US $11.25 CPU :Intel Desktop Prescott Thermal sensor :ADM1032ARM Chipset :ATI-RC400M (ATI-RU400M)//ATI-SB400 VGA :UMA or ATI-M22P/M24P Clock Generator :ICS951411AGT Audio Codec :ALC 250 Audio Amplifier :APA2121,APA2121 KBC(Embeded Controller),SIO :ENE KB910L,ENE KB910 LAN Controller :RTL8100CL CardBUS/1394/Cardreader Contr.:TI-PCI7411 <Power System> ISL6209 ISL6209 ISL6209 ISL6209 ISL6248 APL5331 APL5331 APL5331 APW7057 APW7057 ISL6227 MAX1902 MB3887 Total Pages : 53 File tipe : PDF Language : English |
|---|
Click on picture to enlarge
