Acer Extensa 2900, Motherboard schematic diagram Schematic diagram

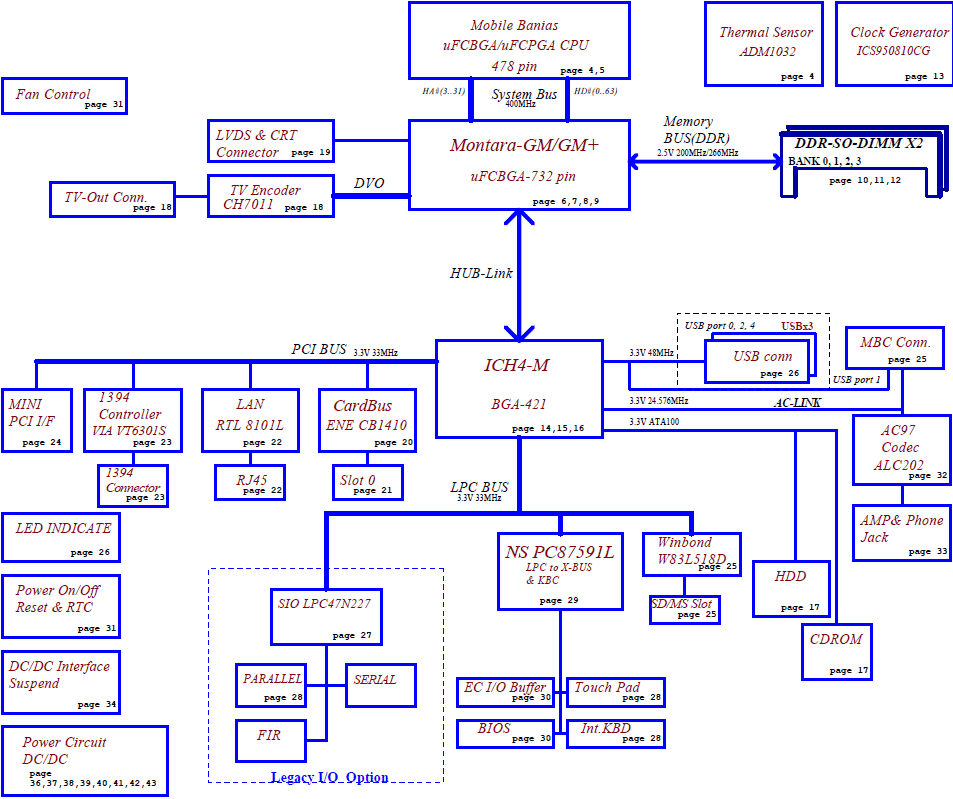

Click on picture to enlarge	Price: US $11.25 Major components CPU :Intel Mobile Banias North Bridge :Montara-GM/GM+ South Bridge :ICH4-M VGA :UMA Clock Generator :ICS950810CG Thermal Sensor :ADM1032 Audio Codec :ALC202 Audio Amplifier :TPA0132PWP KBC(Embeded Controller),SIO :PC87591L,W83L518D LAN Controller :RTL 8101L CardBUS/1394/Cardreader Contr.:ENE CB1410,VIA VT6301S <Power System> MB3887 MAX1631CAI ADP3205 ISL6225 ISL6225 ISL6225 Total Pages : 40 File tipe : PDF Language : English

Click on picture to enlarge

Price: US $11.25

Major components

CPU :Intel Mobile Banias
North Bridge :Montara-GM/GM+
South Bridge :ICH4-M
VGA :UMA
Clock Generator :ICS950810CG
Thermal Sensor :ADM1032
Audio Codec :ALC202
Audio Amplifier :TPA0132PWP
KBC(Embeded Controller),SIO :PC87591L,W83L518D
LAN Controller :RTL 8101L
CardBUS/1394/Cardreader Contr.:ENE CB1410,VIA VT6301S

<Power System>

MB3887
MAX1631CAI
ADP3205
ISL6225
ISL6225
ISL6225

Total Pages : 40
File tipe : PDF
Language : English
