Toshiba Satellite A205-S5825, Laptop Motherboard Schematic diagram

Click on picture to enlarge	Price: US $15.00 WARNING! This laptop may contain two different motherboards! To avoid any mistakes - please provide us with a motherboard part number (OEM one). You can find it under a Memory(RAM)Slot Cover near the Memory Slot. The part number looks like pictured (see additional pictures).We need to know the middle letter of the part number. It's marked by RED "?" Please provide this information with your payment. Major components CPU :Intel Mobile Merom Thermal sensor :ADM1032 Chipset :Intel Intel Crestline //Intel ICH8-M VGA :Intel GMA X3100(UMA)/ ATI M72/76 or M71M Clock Generator :ICS 9LPR365 Audio Codec :ALC268 Audio Amplifier :APA2056 KBC(Embeded Controller),SIO :ENE KB926 LAN Controller :RTL8111B/RTL8101E CardBUS/1394/Cardreader Contr.:TI PCI8412 <Power System> ISL6262 APL5913 APL5331 ISL6268 APL5913 ISL6227 TPS51120 ISL6251 Total Pages : 47 File tipe : PDF Language : English

Click on picture to enlarge

Price: US $15.00

WARNING!
This laptop may contain two different motherboards!

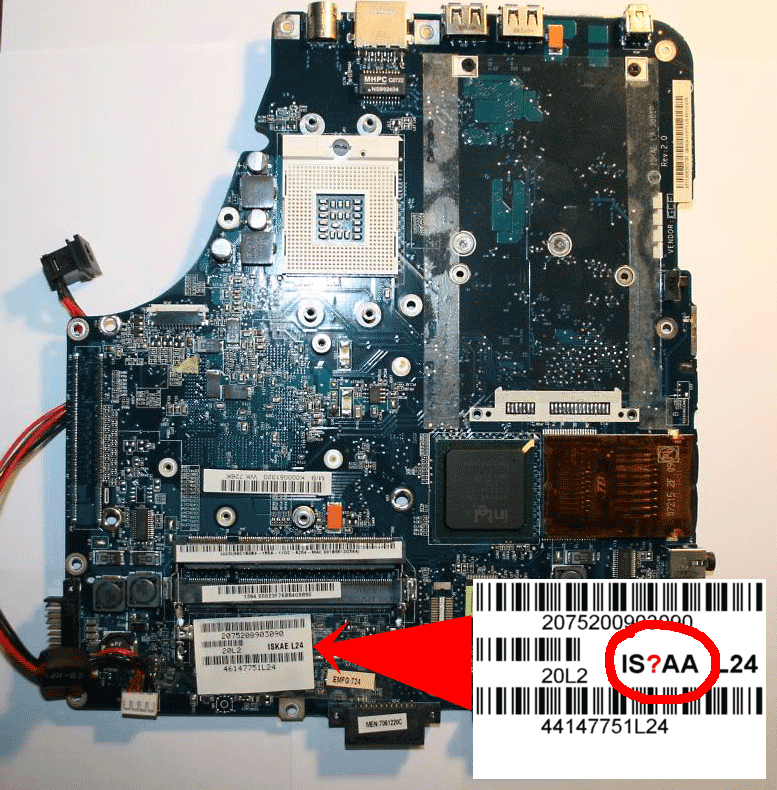

To avoid any mistakes - please provide us with a motherboard
part number (OEM one). You can find it under a Memory(RAM)Slot
Cover near the Memory Slot. The part number looks like pictured
(see additional pictures).We need to know the middle letter of
the part number. It's marked by RED "?"
Please provide this information with your payment.

Major components

CPU :Intel Mobile Merom
Thermal sensor :ADM1032
Chipset :Intel Intel Crestline //Intel ICH8-M
VGA :Intel GMA X3100(UMA)/ ATI M72/76 or M71M
Clock Generator :ICS 9LPR365
Audio Codec :ALC268
Audio Amplifier :APA2056
KBC(Embeded Controller),SIO :ENE KB926
LAN Controller :RTL8111B/RTL8101E
CardBUS/1394/Cardreader Contr.:TI PCI8412

<Power System>

ISL6262
APL5913
APL5331
ISL6268
APL5913
ISL6227
TPS51120
ISL6251

Total Pages : 47
File tipe : PDF
Language : English

Updated: 01-04-2010
