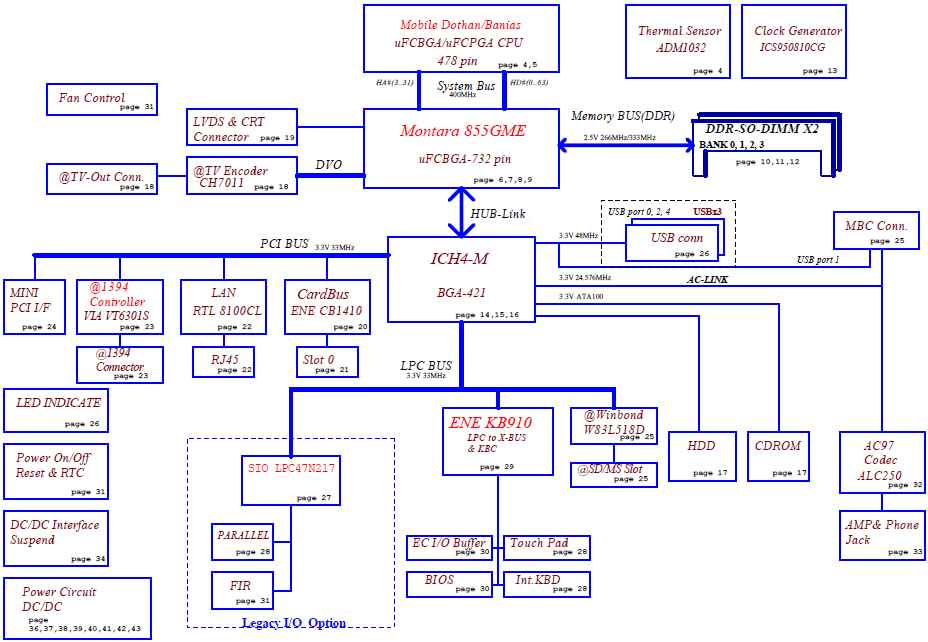

Acer Extensa 2350, Motherboard schematic diagram Schematic diagram

Click on picture to enlarge	Price: US $11.25 Major components CPU : Intel Centrino BANIAS/DORTHAN North Bridge : Montara-GME 82855GME South Bridge : ICH4-M 82801DBM Clock Generator : ICS950810CG Audio Codec : ALC250 KBC(Embeded Controller),SIO : ENE KB910 , Winbond W83L518D LAN Controller : RTL 8100CL CardBUS/1394/Cardreader Contr.: ENE CB1410,VIA VT6301S <Power System> 5V/3.3V/12V : MAX1902EAI +VCC_H_CORE : MAX1907 1.5V & 1.2V : ISL6227 2.5V & 1.25V : CM8562IS,NE57814 2.5V & 1.25V : FAN5234QSCX CHARGER : MB3887 OEM: COMPAL ECL57\ECL59 LA-2511 (! Please check the PCB part number before ordering !) Total Pages : 45 File tipe : PDF Language : English

Click on picture to enlarge

Price: US $11.25

Major components

CPU : Intel Centrino BANIAS/DORTHAN
North Bridge : Montara-GME 82855GME
South Bridge : ICH4-M 82801DBM
Clock Generator : ICS950810CG
Audio Codec : ALC250
KBC(Embeded Controller),SIO : ENE KB910 , Winbond W83L518D
LAN Controller : RTL 8100CL
CardBUS/1394/Cardreader Contr.: ENE CB1410,VIA VT6301S

<Power System>

5V/3.3V/12V : MAX1902EAI
+VCC_H_CORE : MAX1907
1.5V & 1.2V : ISL6227
2.5V & 1.25V : CM8562IS,NE57814
2.5V & 1.25V : FAN5234QSCX
CHARGER : MB3887

OEM: COMPAL ECL57\ECL59 LA-2511 (! Please check the PCB part number before ordering !)

Total Pages : 45
File tipe : PDF
Language : English

Updated: 11-01-2010
