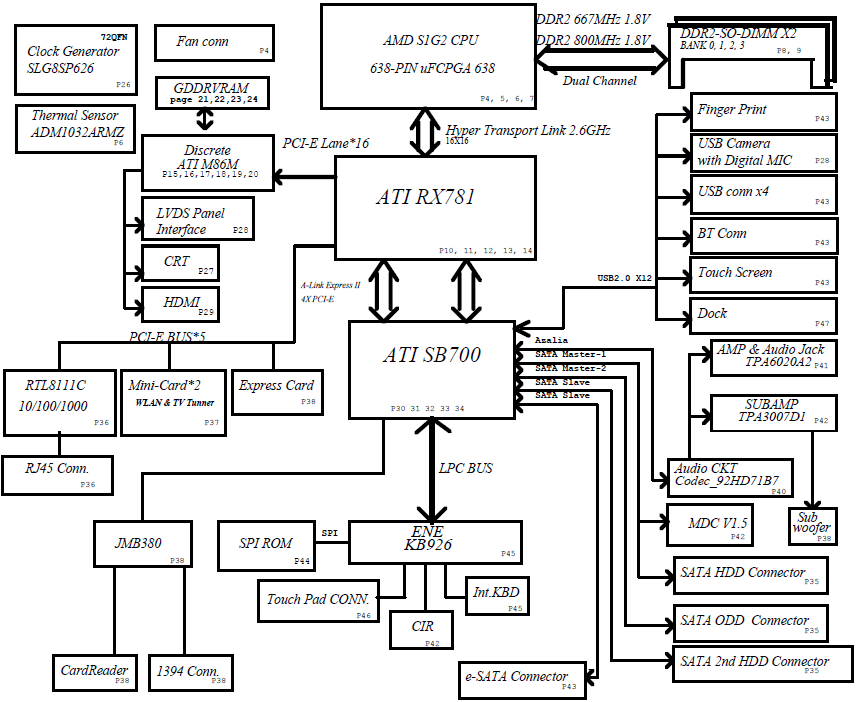

Compal OEM LA-4093P JBK00, Laptop Motherboard Schematic diagram
|
|
Price: US $18.75 Clock Generator :SLG8SP626 Chipset : ATI RX781 // ATI SB700 Video: ATI M86M Thermal Sensor :ADM1032ARMZ Audio : 92HD71B7,TPA6020A2,TPA3007D1 KBC(Embeded Controller),SIO :ene KB926 LAN Controller :RTL8111C Card Bus, etc. :JMB380 Accelerometr:LIS302DLTR <Power System> ISL6269ACRZ ISL6265IRZ G2992F1U G2992F1U APL5508 TPS51124RGER TPS51117RGYR TPS51125RGER BQ24740RHDR LMV431ACM5X Total Pages :58 File type : PDF Language : English |
|---|
Click on picture to enlarge
