Fujitsu-Siemens LIFEBOOK N6010, Laptop Motherboard Schematic diagram

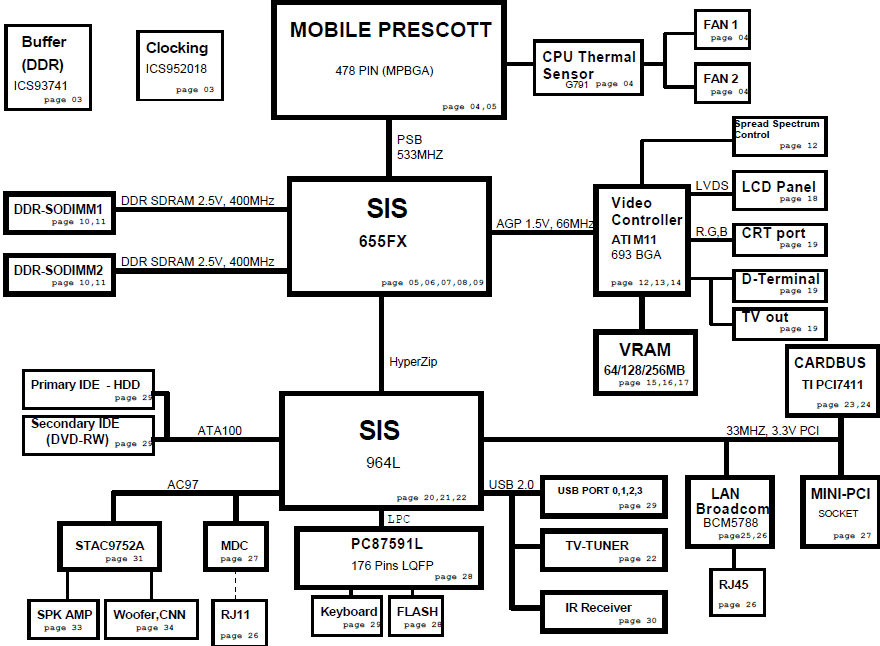

Click on picture to enlarge	Price: US $11.25 CPU :Intel MOBILE PRESCOTT Clock Generator :ICS954226AG Chipset :SIS655FX // SIS964L VGA: ATI M11 Thermal Sensor :G791 Audio :STAC9752A,LM4838MTE,LM4817MH,LM4990MH KBC(EC),SIO :PC87591L LAN Controller :BCM5788 Card BUS contr.,etc...:TI PCI7411 <Power System> MAX1715 G2996F1 G2996F1 MAX1993ETG G2996F1 G2996F1 MAX1632A MAX8724 MAX4173FEUT LP2951 MAX1546A MAX1980 MAX1980 Total Pages :44 File type : PDF Language : English

Click on picture to enlarge

Price: US $11.25

CPU :Intel MOBILE PRESCOTT
Clock Generator :ICS954226AG
Chipset :SIS655FX // SIS964L
VGA: ATI M11
Thermal Sensor :G791
Audio :STAC9752A,LM4838MTE,LM4817MH,LM4990MH
KBC(EC),SIO :PC87591L
LAN Controller :BCM5788
Card BUS contr.,etc...:TI PCI7411

<Power System>

MAX1715
G2996F1
G2996F1
MAX1993ETG
G2996F1
G2996F1
MAX1632A
MAX8724
MAX4173FEUT
LP2951
MAX1546A
MAX1980
MAX1980

Total Pages :44
File type : PDF
Language : English

Updated: 19-03-2010
