Fujitsu-Siemens AMILO Pa3515, Laptop Motherboard Schematic diagram

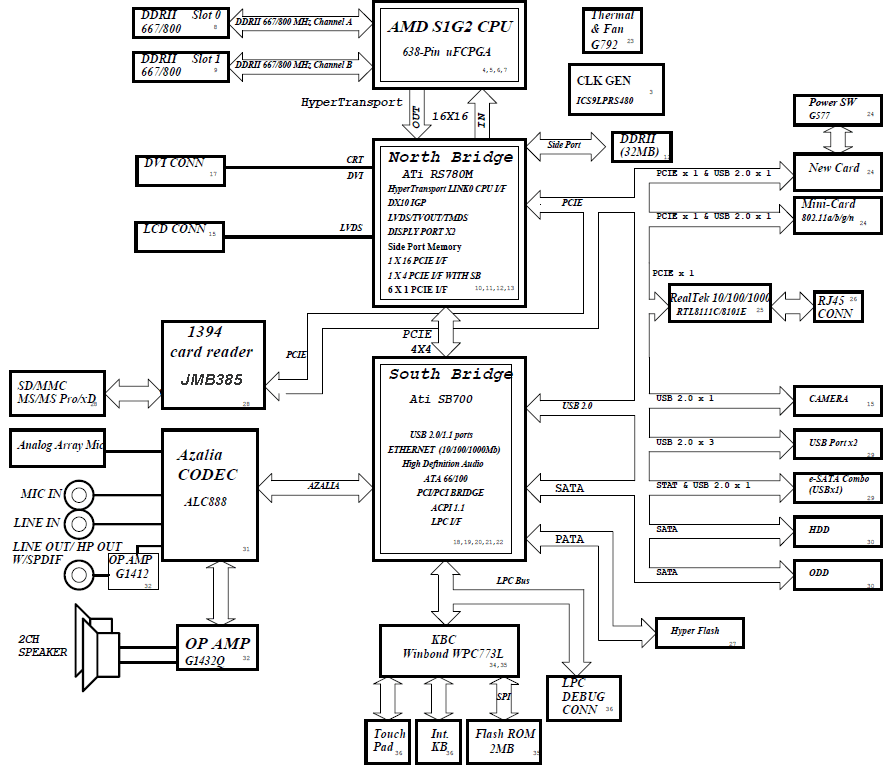

Click on picture to enlarge	Price: US $15.00 Included: POWER BLOCK DIAGRAM CPU :AMD S1G2 Clock Generator :ICS9LPRS480 Chipset :ATi RS780M // Ati SB700 VGA: UMA Thermal Sensor :G792 Audio :ALC888,G1432Q,G1412 KBC(EC),SIO :Winbond WPC773L LAN Controller :RTL8101E(8102E) Card BUS contr.,etc...:JMB385 <Power System> ISL6265 TPS51124 TPS51125 TPS51125 BQ24745 G957 G9161 RT9026PFP G9131 Total Pages :62 File type : PDF Language : English

Click on picture to enlarge

Price: US $15.00

Included: POWER BLOCK DIAGRAM

CPU :AMD S1G2
Clock Generator :ICS9LPRS480
Chipset :ATi RS780M // Ati SB700
VGA: UMA
Thermal Sensor :G792
Audio :ALC888,G1432Q,G1412
KBC(EC),SIO :Winbond WPC773L
LAN Controller :RTL8101E(8102E)
Card BUS contr.,etc...:JMB385

<Power System>

ISL6265
TPS51124
TPS51125
TPS51125
BQ24745
G957
G9161
RT9026PFP
G9131

Total Pages :62
File type : PDF
Language : English

Updated: 19-03-2010
