Fujitsu-Siemens LIFEBOOK S4542, Laptop Motherboard Schematic diagram

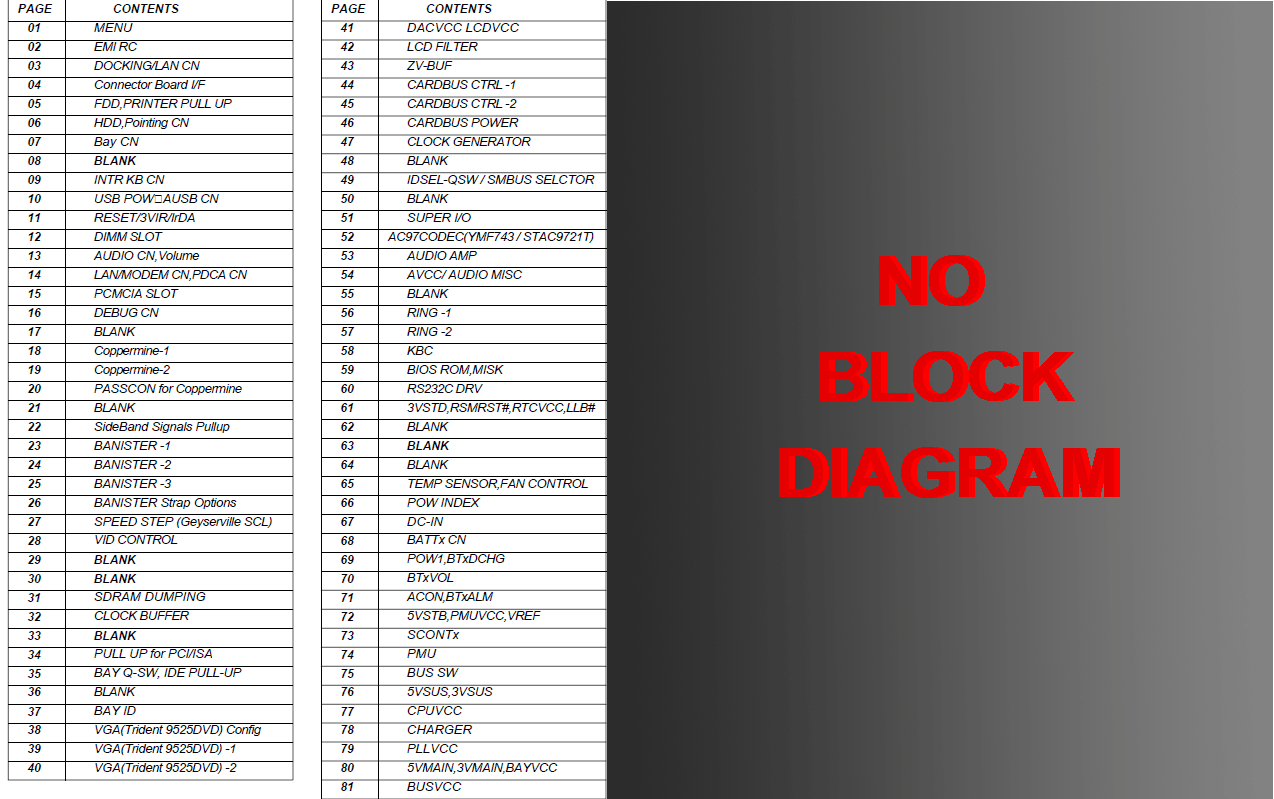

Click on picture to enlarge	Price: US $9.75 CPU : Intel Coppermine Clock Generator :W137 Chipset : Intel Banister VGA:(Cyber9525DVD) Thermal Sensor : Audio :YMF743 / STAC9721T,BH7821BFP-Y KBC(EC),SIO :M38867,FDC37N769 LAN Controller : Card BUS contr.,etc...:PCI1420 <Power System> MIC2564 S-873325BUP MAX472CSA MAX472CSA LP2951CMM S-81235SG MB89567 MAX786 LTC1736 MB3814 NJM2370R25 MB3841 MB3841 LTC1772 Total Pages :72 File type : PDF Language : English/Japanese

Click on picture to enlarge

Price: US $9.75

CPU : Intel Coppermine
Clock Generator :W137
Chipset : Intel Banister
VGA:(Cyber9525DVD)
Thermal Sensor :
Audio :YMF743 / STAC9721T,BH7821BFP-Y
KBC(EC),SIO :M38867,FDC37N769
LAN Controller :
Card BUS contr.,etc...:PCI1420

<Power System>

MIC2564
S-873325BUP
MAX472CSA
MAX472CSA
LP2951CMM
S-81235SG
MB89567
MAX786
LTC1736
MB3814
NJM2370R25
MB3841
MB3841
LTC1772

Total Pages :72
File type : PDF
Language : English/Japanese

Updated: 18-03-2010
