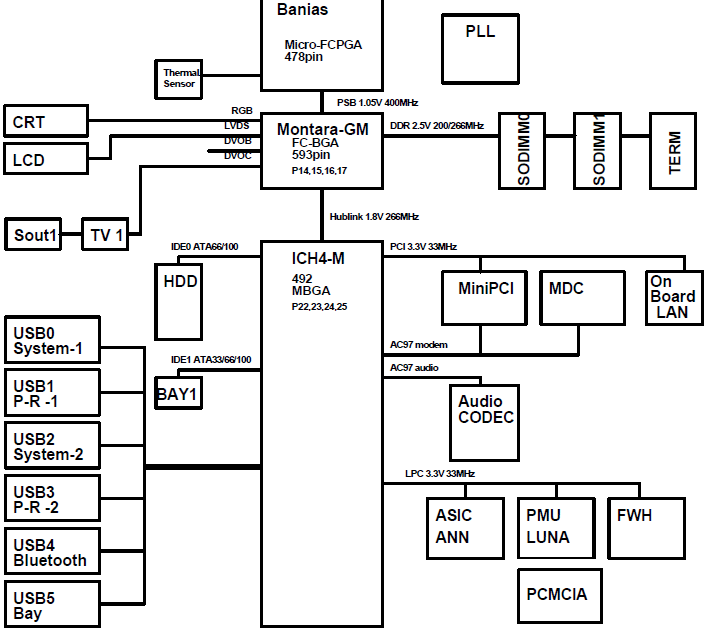

Fujitsu-Siemens LIFEBOOK S6120, Laptop Motherboard Schematic diagram
Click on picture to enlarge |
*Power Block Diagram is included CPU : Intel PM Banias Clock Generator :CY28339ZCT Chipset : Intel MONTARA-GM // ICH4-M Video: UMA Thermal Sensor :ADM1030R4 Audio :STAC9767T,BH7880 KBC(EC),SIO :LUNA1/2(MB90370),LPC47N227-MN LAN Controller :RTL8100B(L) Card BUB Contr., etc...:MAX3243CPW(RS232),OZ711M2 PC to TV Encoder :CH7011 <Power System> NM24C02LMT8 BD3180FV BD3180FV BD6520F BD6520F BD6520F BD6522F LP2950ACDT BA3948FP LP2951CMM BA00BC0WF MB3879PFV TPS5120DBT TPS54672 LTC1773EMS ADP3415 ADP3415 ADP3205 MIC2564A (PCMCIA-Card BUS switch) Total Pages :69 File type : PDF Language : English |
---|
