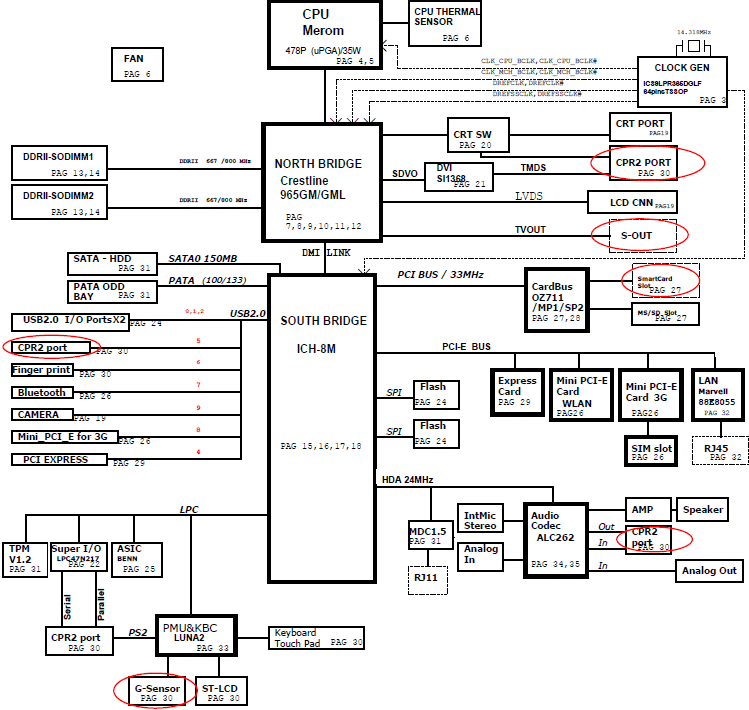

Fujitsu-Siemens LIFEBOOK S7210, Laptop Motherboard Schematic diagram

Click on picture to enlarge	Price: US $15.00 *POWER Control and POWER SEQUENCE Timing diagrams are included CPU : Intel Merom Clock Generator :ICS9LPR365DGLF Chipset : Intel Crestline 965GM/GML // ICH-8M Video: UMA Thermal Sensor :ADT7473ARQZ Audio :ALC262, KBC(EC),SIO :LUNA2(MB90F378PFF),BENN(S1L50552F33N000),LPC47N217 LAN Controller :Marvell 88E8055 Card BUB Contr., etc...:OZ711 Fingerprint Controller: AES2501B <Power System> CPU CORE:PU1 -MAX8770 LDO :PU2,PU3 -G9339,PU4 -G914D Battery :PU5 - MM1380AWBE CHARGER :PU6 - MAX8724ETI+ 5VPMU/5VSTD/3VPMU/3VSTD:PU8 -TI51020 1.8V_DIMM:PU9 -TPS51117,PU10 -TPS51100 1.05V/ETC0:PU12 -TPS51117 Total Pages :50 File type : PDF Language : English

Click on picture to enlarge

Price: US $15.00

*POWER Control and POWER SEQUENCE Timing diagrams are included

CPU : Intel Merom
Clock Generator :ICS9LPR365DGLF
Chipset : Intel Crestline 965GM/GML // ICH-8M
Video: UMA
Thermal Sensor :ADT7473ARQZ
Audio :ALC262,
KBC(EC),SIO :LUNA2(MB90F378PFF),BENN(S1L50552F33N000),LPC47N217
LAN Controller :Marvell 88E8055
Card BUB Contr., etc...:OZ711
Fingerprint Controller: AES2501B

<Power System>

CPU CORE:PU1 -MAX8770
LDO :PU2,PU3 -G9339,PU4 -G914D
Battery :PU5 - MM1380AWBE
CHARGER :PU6 - MAX8724ETI+
5VPMU/5VSTD/3VPMU/3VSTD:PU8 -TI51020
1.8V_DIMM:PU9 -TPS51117,PU10 -TPS51100
1.05V/ETC0:PU12 -TPS51117

Total Pages :50
File type : PDF
Language : English

Updated: 18-03-2010
