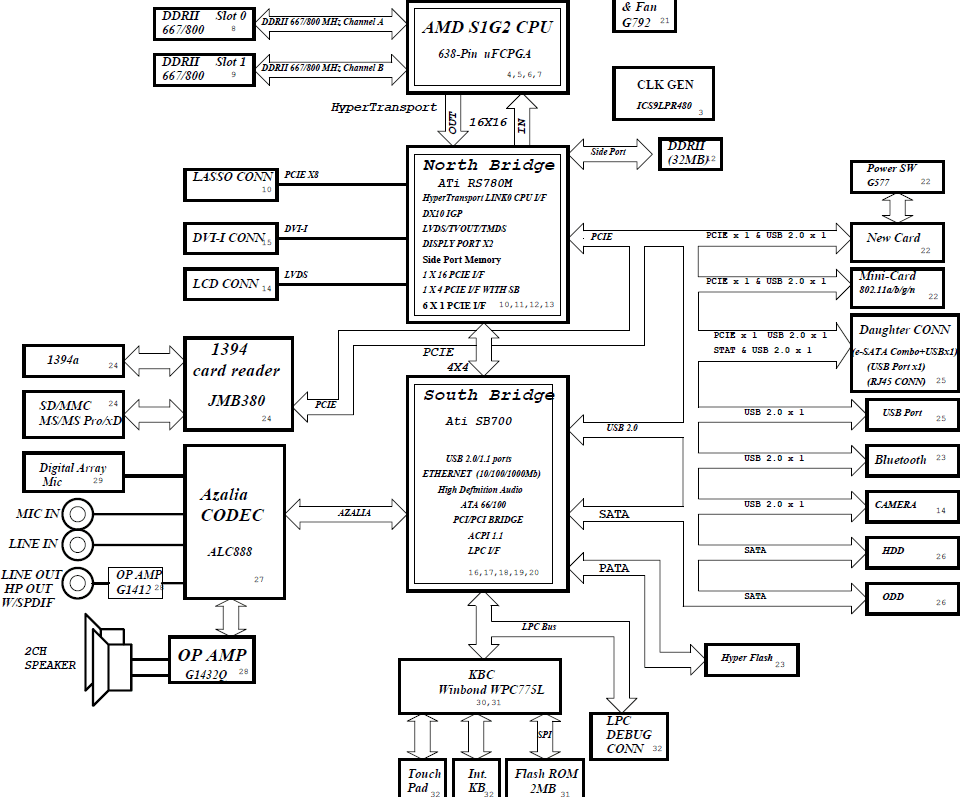

Fujitsu-Siemens AMILO Sa3650, Laptop Motherboard Schematic diagram

Click on picture to enlarge	Price: US $15.00 *Power Block Diagram is included CPU : AMD S1G2 Clock Generator :RTM880N-796-GRT-GP (ICS9LPR473/ICS9LPR480) Chipset : ATi RS780M // Ati SB700 Video: UMA Thermal Sensor :G792 Audio :ALC888,G1432Q,G1412 KBC(Embeded Controller),SIO :Winbond WPC775L LAN Controller :Realtec RTL8111B/8100E/8101E Card BUB Contr., etc...:JMB380 <Power System> ISL6265 TPS51124 TPS51125 TPS51125 BQ24745 G9161 G957 G9131 TPS51100DGQR RT9026PFP Total Pages :50 File type : PDF Language : English

Click on picture to enlarge

Price: US $15.00

*Power Block Diagram is included

CPU : AMD S1G2
Clock Generator :RTM880N-796-GRT-GP (ICS9LPR473/ICS9LPR480)
Chipset : ATi RS780M // Ati SB700
Video: UMA
Thermal Sensor :G792
Audio :ALC888,G1432Q,G1412
KBC(Embeded Controller),SIO :Winbond WPC775L
LAN Controller :Realtec RTL8111B/8100E/8101E
Card BUB Contr., etc...:JMB380

<Power System>

ISL6265
TPS51124
TPS51125
TPS51125
BQ24745
G9161
G957
G9131
TPS51100DGQR
RT9026PFP

Total Pages :50
File type : PDF
Language : English

Updated: 18-03-2010
