Fujitsu-Siemens AMILO Si1848, Laptop Motherboard Schematic diagram

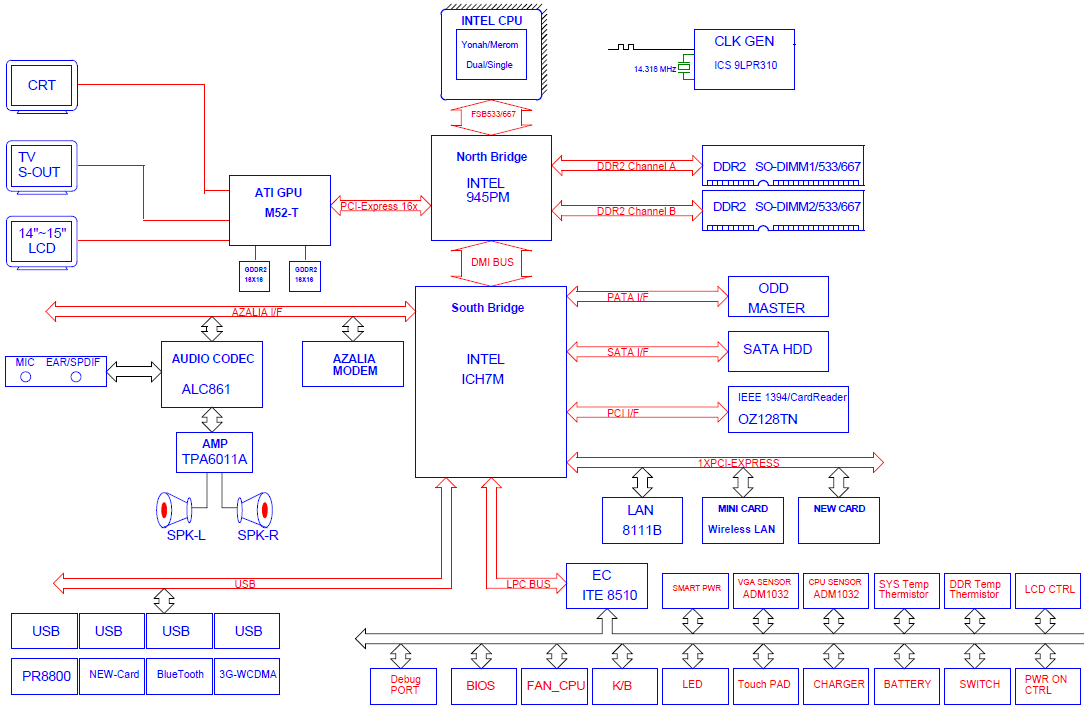

Click on picture to enlarge	Price: US $15.00 *POWER BLOCK DIAGRAM & POWER SEQUENCE Timing diagram are included CPU : Intel Yonah/Merom Clock Generator :ICS 9LPR310 Chipset : Intel 945PM // ICH7-M Video: ATI M52-T Thermal Sensor :ADM1032,ADM1032 Audio :ALC880/ALC861,TPA6011A KBC(Embeded Controller),SIO :ITE 8510 LAN Controller :Realtec RTL8111B/8100E/8101E Card BUB Contr., etc...:OZ128TN <Power System> TL594 OZ813 OZ818 FIFT6137B FIFT6137B OZ813 FIFT6137B CM431LBCM233 MAX8771 MAX8734A Total Pages :42 File type : PDF Language : English

Click on picture to enlarge

Price: US $15.00

*POWER BLOCK DIAGRAM & POWER SEQUENCE Timing diagram are included

CPU : Intel Yonah/Merom
Clock Generator :ICS 9LPR310
Chipset : Intel 945PM // ICH7-M
Video: ATI M52-T
Thermal Sensor :ADM1032,ADM1032
Audio :ALC880/ALC861,TPA6011A
KBC(Embeded Controller),SIO :ITE 8510
LAN Controller :Realtec RTL8111B/8100E/8101E
Card BUB Contr., etc...:OZ128TN

<Power System>

TL594
OZ813
OZ818
FIFT6137B
FIFT6137B
OZ813
FIFT6137B
CM431LBCM233
MAX8771
MAX8734A

Total Pages :42
File type : PDF
Language : English

Updated: 18-03-2010
