Fujitsu-Siemens AMILO Si2636, Laptop Motherboard Schematic diagram

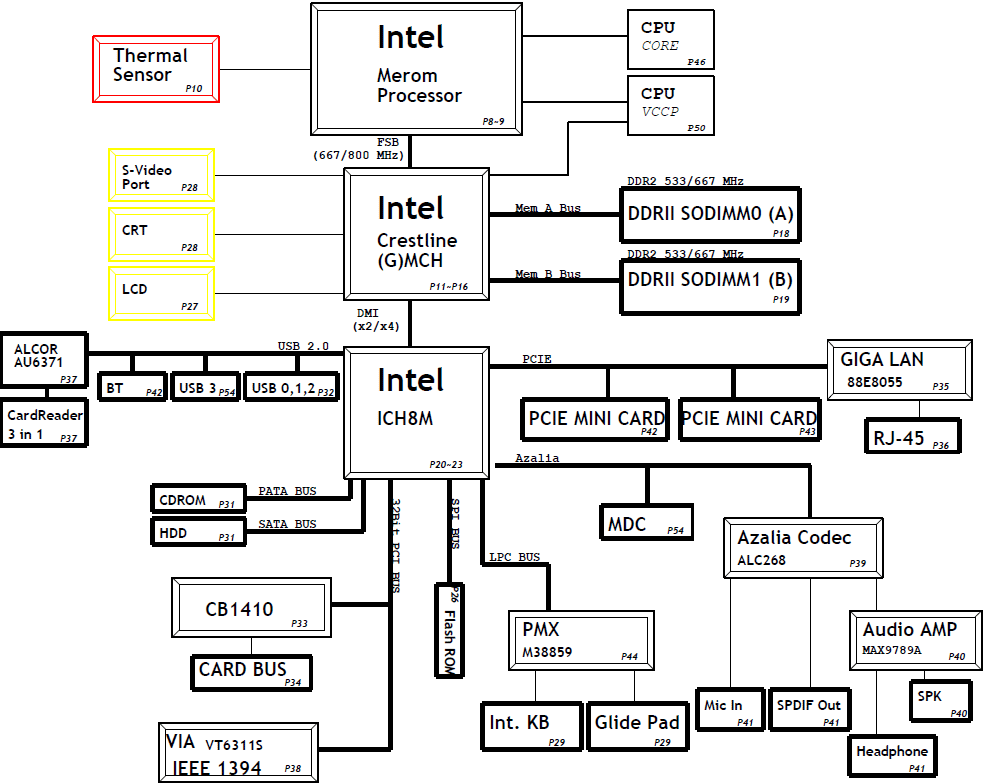

Click on picture to enlarge	Price: US $15.00 * Power Block diagram and Power On/Off/S3 Sequence Timing diagram are included. CPU : Intel Merom Clock Generator :SLG8SP512TTR Chipset : Intel Crestline GM965 // ICH8M Video: UMA Thermal Sensor :G784P81U,G752P82U,G752P82U Audio :ALC268,MAX9789 KBC(Embeded Controller),SIO :M38859 LAN Controller :88E8055 Card Bus, etc. :CB1410,AU6371,VIA VT6311S Accelerometer :SMB380 <Power System> APL5912 MAX8797GTI+ MAX8792ETD G2998F11U MAX8792ETD MAX8792ETD+T MAX8744ETJ+ APL5151 MAX8730ETI+ MM1380AWBE MAX8770GTL+ Total Pages :58 File type : PDF Language : English

Click on picture to enlarge

Price: US $15.00

* Power Block diagram and Power On/Off/S3 Sequence Timing diagram are included.

CPU : Intel Merom
Clock Generator :SLG8SP512TTR
Chipset : Intel Crestline GM965 // ICH8M
Video: UMA
Thermal Sensor :G784P81U,G752P82U,G752P82U
Audio :ALC268,MAX9789
KBC(Embeded Controller),SIO :M38859
LAN Controller :88E8055
Card Bus, etc. :CB1410,AU6371,VIA VT6311S
Accelerometer :SMB380

<Power System>

APL5912
MAX8797GTI+
MAX8792ETD
G2998F11U
MAX8792ETD
MAX8792ETD+T
MAX8744ETJ+
APL5151
MAX8730ETI+
MM1380AWBE
MAX8770GTL+

Total Pages :58
File type : PDF
Language : English

Updated: 18-03-2010
