Fujitsu-Siemens AMILO Si3655, Laptop Motherboard Schematic diagram

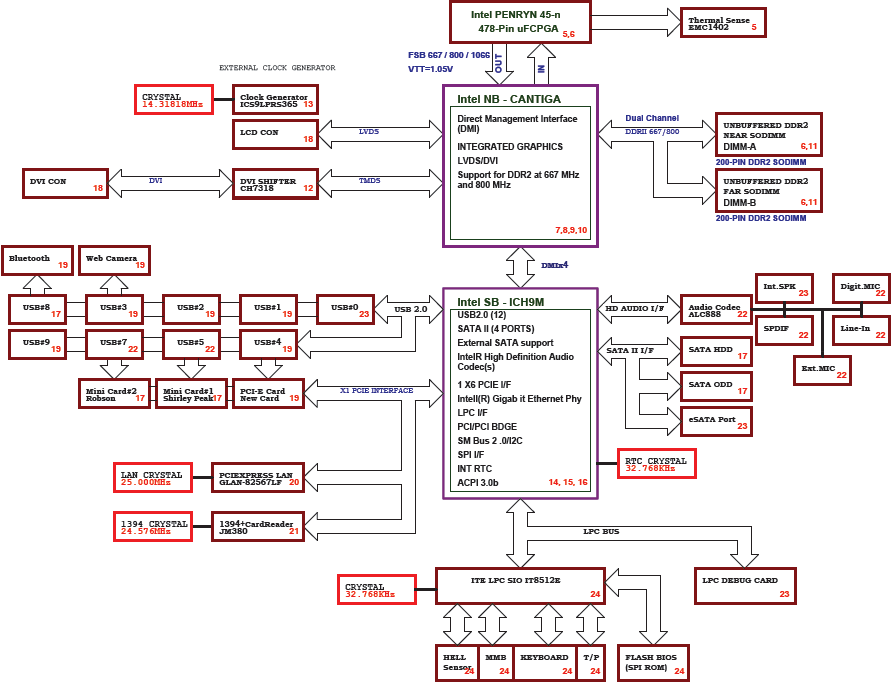

Click on picture to enlarge	Price: US $15.00 * Power Block diagram is included. CPU : Intel PENRYN Clock Generator :ICS9LPRS365 Chipset : Intel CANTIGA // ICH9M Video: UMA Thermal Sensor :EMC1402 Audio :ALC888/ALC888S-VC,TPA6011A4 KBC(Embeded Controller),SIO :ITE IT8512E LAN Controller :82567LF Card Bus, etc. :JM380/JM385 <Power System> OZ8602 OZ8138 OZ811 FP6137 OZ827 MAX8770 OZ815 Total Pages :36 File type : PDF Language : English

Click on picture to enlarge

Price: US $15.00

* Power Block diagram is included.

CPU : Intel PENRYN
Clock Generator :ICS9LPRS365
Chipset : Intel CANTIGA // ICH9M
Video: UMA
Thermal Sensor :EMC1402
Audio :ALC888/ALC888S-VC,TPA6011A4
KBC(Embeded Controller),SIO :ITE IT8512E
LAN Controller :82567LF
Card Bus, etc. :JM380/JM385

<Power System>

OZ8602
OZ8138
OZ811
FP6137
OZ827
MAX8770
OZ815

Total Pages :36
File type : PDF
Language : English

Updated: 18-03-2010
