Fujitsu-Siemens AMILO Xa1526, Laptop Motherboard Schematic diagram

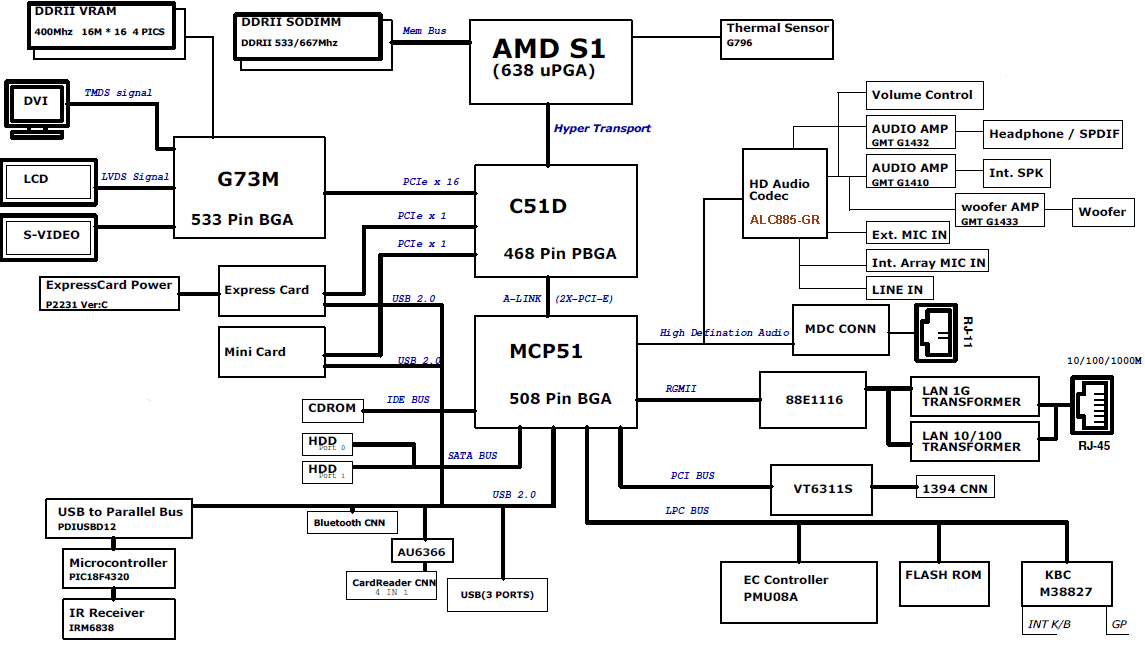

Click on picture to enlarge	Price: US $15.00 * Power Block diagram is included. CPU : AMD AMD S1 Clock Generator : Chipset : C51D // MCP51 Video: G73M Thermal Sensor :G796 Audio :ALC885-GR,GMT G1432,GMT G1410,GMT G1433 KBC(Embeded Controller),SIO :M38827,PMU08A(M38857M8-A09HP) LAN Controller :MARVELL 88E1116 Card Bus, etc. :VT6311S,AU6366 <Power System> MAX8774 MM1380AWBE MB3887PFVE1 MAX8734AEEI+ G1117T63UF G916T1Uf SC411MLTRT G2996F1UF G2996F1UF SC413TSTRT G1117T63U G9338 Total Pages :61 File type : PDF Language : English

Click on picture to enlarge

Price: US $15.00

* Power Block diagram is included.

CPU : AMD AMD S1
Clock Generator :
Chipset : C51D // MCP51
Video: G73M
Thermal Sensor :G796
Audio :ALC885-GR,GMT G1432,GMT G1410,GMT G1433
KBC(Embeded Controller),SIO :M38827,PMU08A(M38857M8-A09HP)
LAN Controller :MARVELL 88E1116
Card Bus, etc. :VT6311S,AU6366

<Power System>

MAX8774
MM1380AWBE
MB3887PFVE1
MAX8734AEEI+
G1117T63UF
G916T1Uf
SC411MLTRT
G2996F1UF
G2996F1UF
SC413TSTRT
G1117T63U
G9338

Total Pages :61
File type : PDF
Language : English

Updated: 18-03-2010
