Fujitsu-Siemens AMILO Xa2528, Laptop Motherboard Schematic diagram

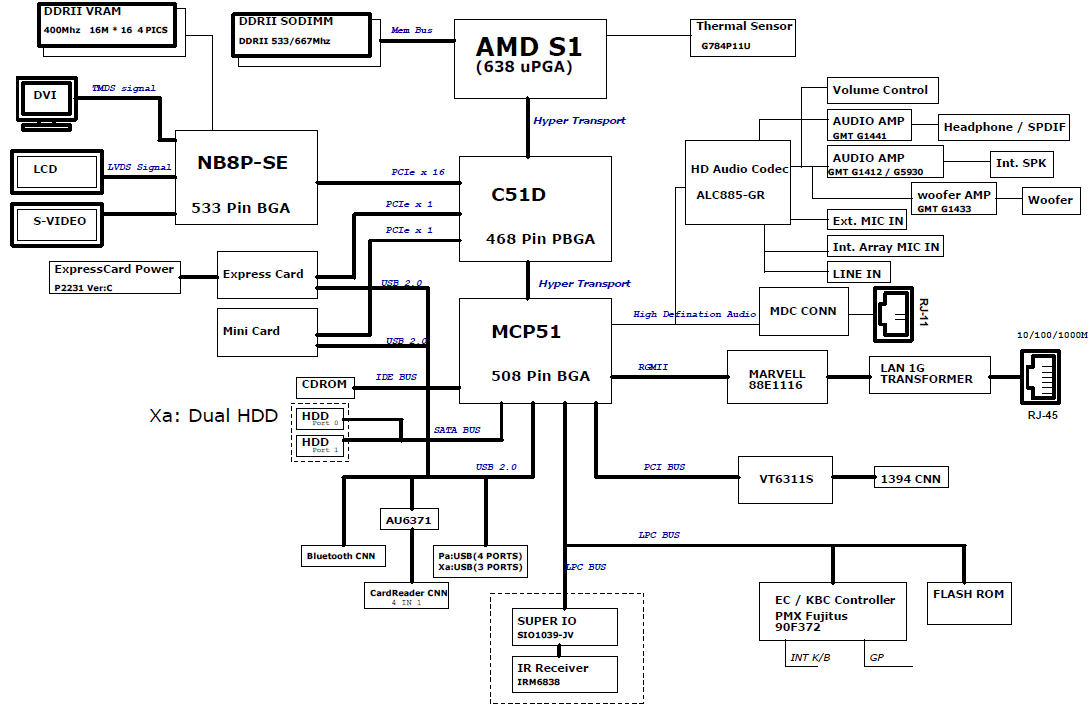

Click on picture to enlarge	Price: US $15.00 * Power Block diagram is included. CPU : AMD AMD S1 Clock Generator : Chipset : C51D // MCP51 Video: NB8P-SE Thermal Sensor :G784P81U (G784P11U) Audio :ALC885-GR,GMT G1441,GMT G1412 / G5930,GMT G1433 KBC(Embeded Controller),SIO :Fujitsu 90F372,SIO1039-JV LAN Controller :MARVELL 88E1116 Card Bus, etc. :VT6311S,AU6371 IR Receiver :IRM6838 <Power System> SC413TSTRT G9338 G1117T63UF SC411MLTRT G2998F11U G1117T63UF G916T1Uf MAX8734AEEI+ MB3887PFVE1 MM1380AWBE MAX8774GTL+ Total Pages :116 File type : PDF Language : English

Click on picture to enlarge

Price: US $15.00

* Power Block diagram is included.

CPU : AMD AMD S1
Clock Generator :
Chipset : C51D // MCP51
Video: NB8P-SE
Thermal Sensor :G784P81U (G784P11U)
Audio :ALC885-GR,GMT G1441,GMT G1412 / G5930,GMT G1433
KBC(Embeded Controller),SIO :Fujitsu 90F372,SIO1039-JV
LAN Controller :MARVELL 88E1116
Card Bus, etc. :VT6311S,AU6371
IR Receiver :IRM6838

<Power System>

SC413TSTRT
G9338
G1117T63UF
SC411MLTRT
G2998F11U
G1117T63UF
G916T1Uf
MAX8734AEEI+
MB3887PFVE1
MM1380AWBE
MAX8774GTL+

Total Pages :116
File type : PDF
Language : English

Updated: 18-03-2010
