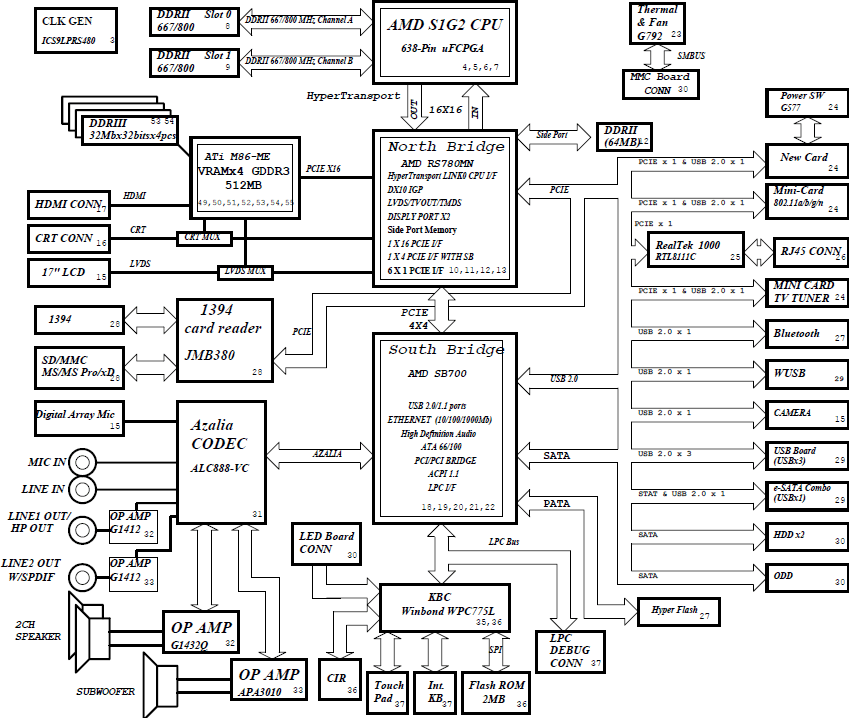

Fujitsu-Siemens AMILO Xa3530, Laptop Motherboard Schematic diagram
|
|
Price: US $15.00 Clock Generator : ICS9LPRS480 Chipset : AMD RS780MN // AMD SB700 Video: ATi M86-ME Thermal Sensor :G792 Audio : ALC888-VC,G1432Q,APA3010,G1412,G1412 KBC(Embeded Controller),SIO :Winbond WPC775L LAN Controller :RTL8111C Card Bus, etc. :JMB380 <Power System> ISL6265 TPS51124 TPS51125 TPS51125 BQ24745 G909-330T1U G957T65UF G9161-120U65U TPS51100DGQR G9131-25T73UF Total Pages :116 File type : PDF Language : English |
|---|
Click on picture to enlarge
