Fujitsu-Siemens AMILO PRO V3515, Laptop Motherboard Schematic diagram

Click on picture to enlarge	Price: US $11.25 *Power On Sequencing Timing Diagram and Power Block diagram are included CPU : Intel Yonah Clock Generator :ICS953009AFLF-T Chipset : VIA VN896 // VT8237A Video: UMA (LVDS contr.- VT1634AL) Thermal Sensor :G796S1U Audio :CX20549-12Z,G1432Q5U,G1410Q4U KBC(Embeded Controller),SIO :M38827G5HP, PMU08A(M38857M8-A09HP) LAN Controller :VT6103L <Power System> ISL6262CRZ PST9228NR PST9228NR PST9228NR PST9228NR G1117T63UF G916T1Uf APL5331KA SC411MLTRT APL5912 SC486IMLTRT MAX8734AEEI+ MM1380AWBE MB3887PFV Total Pages :37 File type : PDF Language : English

Click on picture to enlarge

Price: US $11.25

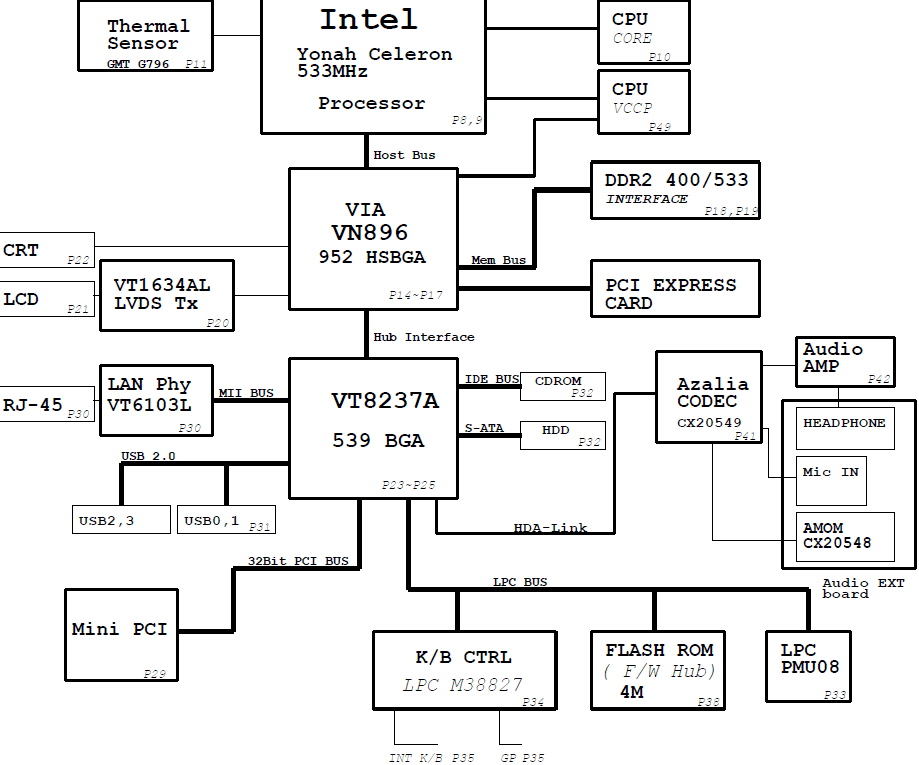

*Power On Sequencing Timing Diagram and Power Block diagram are included

CPU : Intel Yonah
Clock Generator :ICS953009AFLF-T
Chipset : VIA VN896 // VT8237A
Video: UMA (LVDS contr.- VT1634AL)
Thermal Sensor :G796S1U
Audio :CX20549-12Z,G1432Q5U,G1410Q4U
KBC(Embeded Controller),SIO :M38827G5HP, PMU08A(M38857M8-A09HP)
LAN Controller :VT6103L

<Power System>

ISL6262CRZ
PST9228NR
PST9228NR
PST9228NR
PST9228NR
G1117T63UF
G916T1Uf
APL5331KA
SC411MLTRT
APL5912
SC486IMLTRT
MAX8734AEEI+
MM1380AWBE
MB3887PFV

Total Pages :37
File type : PDF
Language : English

Updated: 18-03-2010
