Fujitsu-Siemens AMILO PRO V7010, Laptop Motherboard Schematic diagram

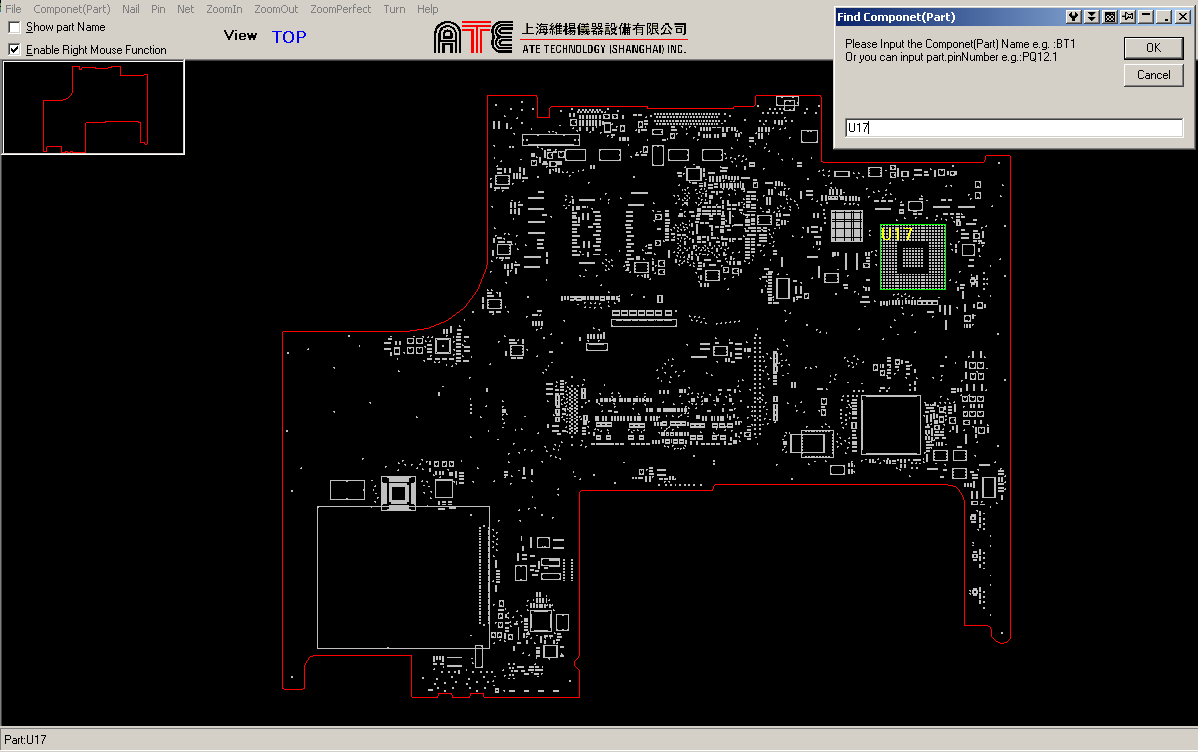

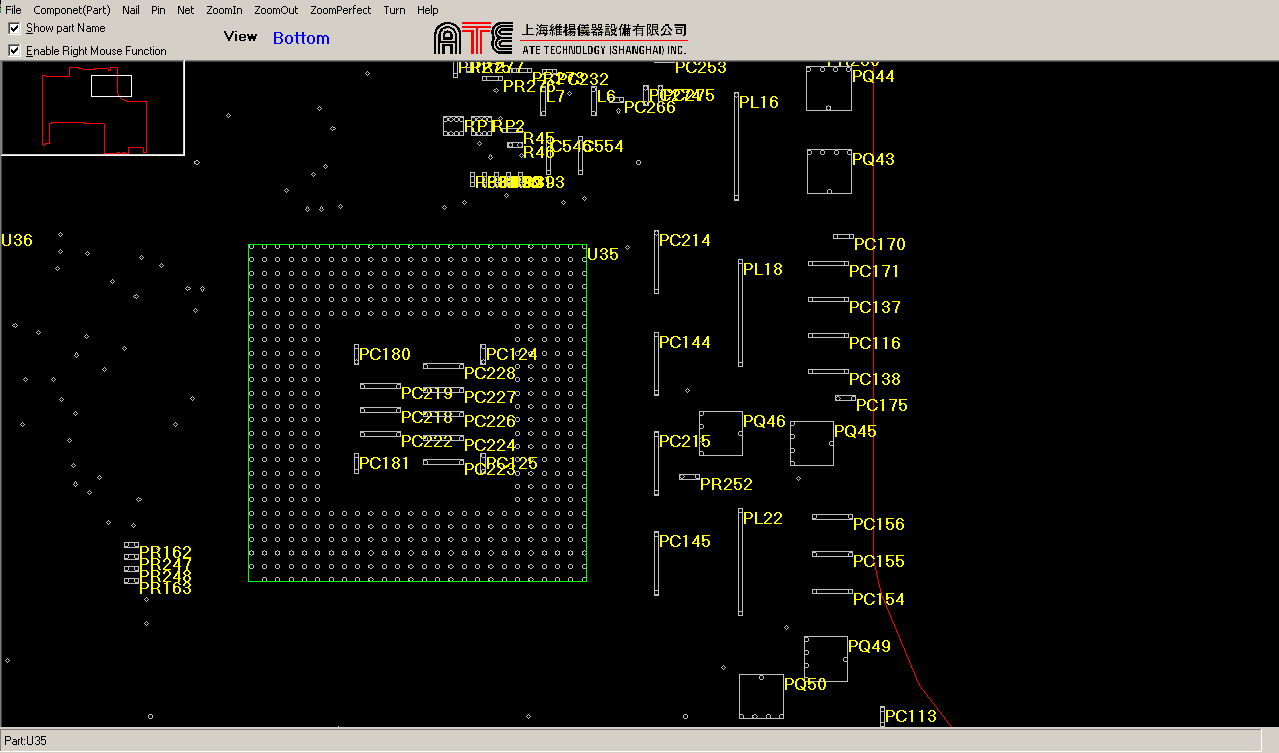

Click on picture to enlarge	Price: US $11.25 *Board view included. Locate any component, any signal or a component pinout in few seconds! "Board view"? How it works? Download and try free sample! No installation needed Board View Sample 259,50 KB CPU : Intel NORTHWOOD/ PRESCOOT Clock Generator :ICS 951402 Chipset : ATI RC300ML // IXP150 Video: UMA Thermal Sensor :GMT781 Audio :CONEXANT 20468-31,TPA0212 KBC(Embeded Controller),SIO :PCPP97551VPC,PC87383 LAN Controller :BROADCOM 4401 Card Bus, etc. :TI 1610 <Power System> MAX1772 ISL6248 MAX1999 MAX1845 GMT-LP2996 SC1565 Total Pages :40 File type : PDF Language : English

Click on picture to enlarge

Price: US $11.25

*Board view included. Locate any component, any signal or a component
pinout in few seconds!

"Board view"? How it works? Download and try free sample! No installation needed

Board View Sample

259,50 KB

CPU : Intel NORTHWOOD/ PRESCOOT
Clock Generator :ICS 951402
Chipset : ATI RC300ML // IXP150
Video: UMA
Thermal Sensor :GMT781
Audio :CONEXANT 20468-31,TPA0212
KBC(Embeded Controller),SIO :PCPP97551VPC,PC87383
LAN Controller :BROADCOM 4401
Card Bus, etc. :TI 1610

<Power System>

MAX1772
ISL6248
MAX1999
MAX1845
GMT-LP2996
SC1565

Total Pages :40
File type : PDF
Language : English

Updated: 18-03-2010
