Fujitsu-Siemens AMILO Pa1510, Laptop Motherboard Schematic diagram
|
|
Price: US $15.00 Clock Generator :ICS951462 Chipset : ATI RS485MC // SB460 Video: UMA Thermal Sensor :ADM 1032 Audio :ALC861,EUA6011 KBC(Embeded Controller),SIO :IT8510E LAN Controller :RTL8100CL Card Bus, etc. :OZ128 <Power System> TL594 EUP7171 EUP7171 EUP7171 OZ818 OZ813 OZ828 MAX8734A Total Pages :29 File type : PDF Language : English |
|---|

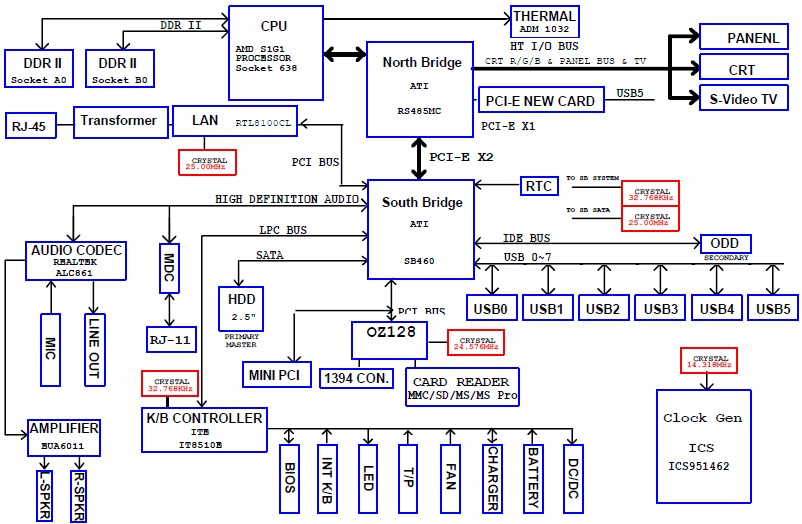

Click on picture to enlarge
