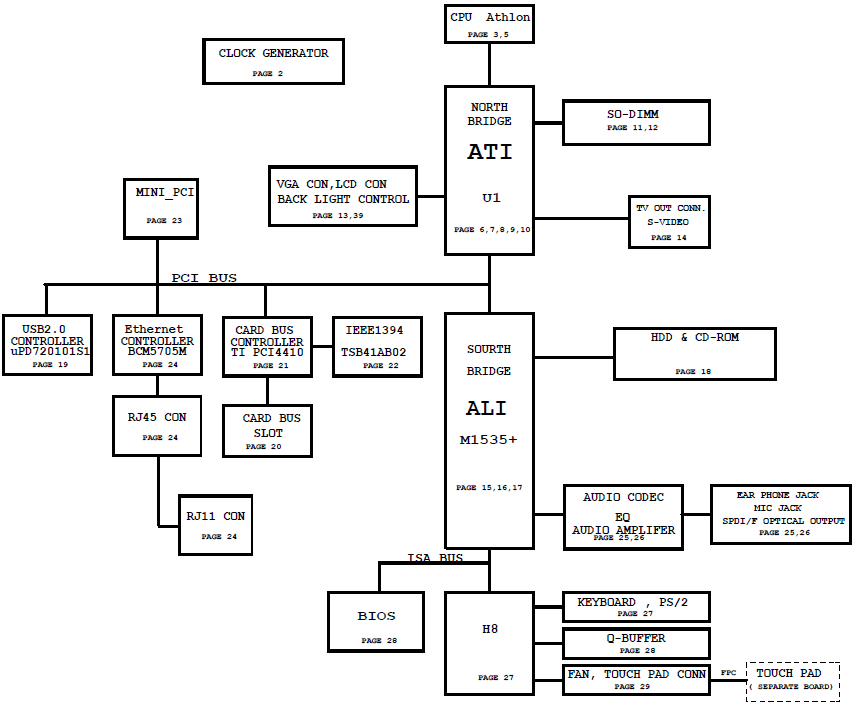

Amoi V-series V6, Laptop Motherboard Schematic diagram

Click on picture to enlarge	Price: US $11.25 Major components CPU : AMD Athlon Thermal Sensor :ADM1032 Chipset : ATI MOBILITY_U1 // ALI M1535+ Video: UMA Clock Generator :ICS951403CGT Audio Codec : AD1981B Audio Amplifier:LM4866MTE KBC(Embeded Controller),SIO : H8 LAN Controller :BCM5705M Card Bus, etc. :TSB41AB02,TI PCI4410,uPD720101S1,CB1410-ENE <Power System> MAX1772 SC1485ITSTR LP2996VRX ISL6223 MAX1902 Total Pages :40 File type : PDF Language : English

Click on picture to enlarge

Price: US $11.25

Major components

CPU : AMD Athlon
Thermal Sensor :ADM1032
Chipset : ATI MOBILITY_U1 // ALI M1535+
Video: UMA
Clock Generator :ICS951403CGT
Audio Codec : AD1981B
Audio Amplifier:LM4866MTE
KBC(Embeded Controller),SIO : H8
LAN Controller :BCM5705M
Card Bus, etc. :TSB41AB02,TI PCI4410,uPD720101S1,CB1410-ENE

<Power System>

MAX1772
SC1485ITSTR
LP2996VRX
ISL6223
MAX1902

Total Pages :40
File type : PDF
Language : English

Updated: 06-03-2010
