Amoi M-series M626, Laptop Motherboard Schematic diagram

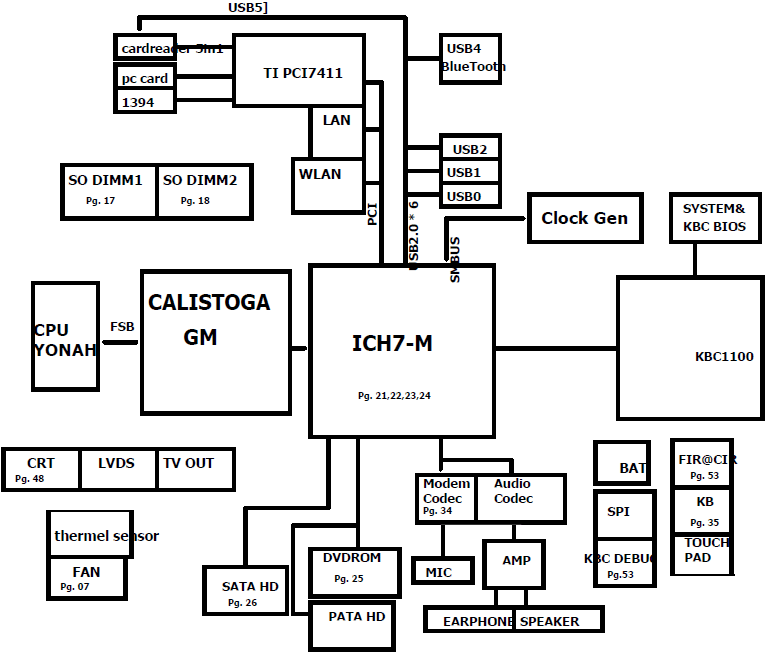

Click on picture to enlarge	Price: US $15.00 Major components CPU : Intel YONAH Chipset : Intel CALISTOGA GM // ICH7-M Video: UMA Clock Generator :CY28442ZXC-2 Audio Codec : ALC260 Audio Amplifier :MAX9755ETI+ FM RADIO TUNER :SI4700-GM KBC(Embeded Controller),SIO :KBC1122-AJZS LAN Controller :RTL8110SBLLF Card BUS etc...:R5C841 <Power System> MAX1908ETI ISL6232 SPX2945S-3.3 TPS51116PWP TPS51116PWP ISL6227CA-T ISL6262CRZ-T INCLUDED: RESET TOPOLOGY diagram SMBUS TOPOLOGY diagram *POWER ON SEQUENCE diagram Total Pages :55 File type : PDF Language : English

Click on picture to enlarge

Price: US $15.00

Major components

CPU : Intel YONAH
Chipset : Intel CALISTOGA GM // ICH7-M
Video: UMA
Clock Generator :CY28442ZXC-2
Audio Codec : ALC260
Audio Amplifier :MAX9755ETI+
FM RADIO TUNER :SI4700-GM
KBC(Embeded Controller),SIO :KBC1122-AJZS
LAN Controller :RTL8110SBLLF
Card BUS etc...:R5C841

<Power System>

MAX1908ETI
ISL6232
SPX2945S-3.3
TPS51116PWP
TPS51116PWP
ISL6227CA-T
ISL6262CRZ-T

INCLUDED:

*RESET TOPOLOGY diagram
*SMBUS TOPOLOGY diagram
*POWER ON SEQUENCE diagram

Total Pages :55
File type : PDF
Language : English

Updated: 06-03-2010
