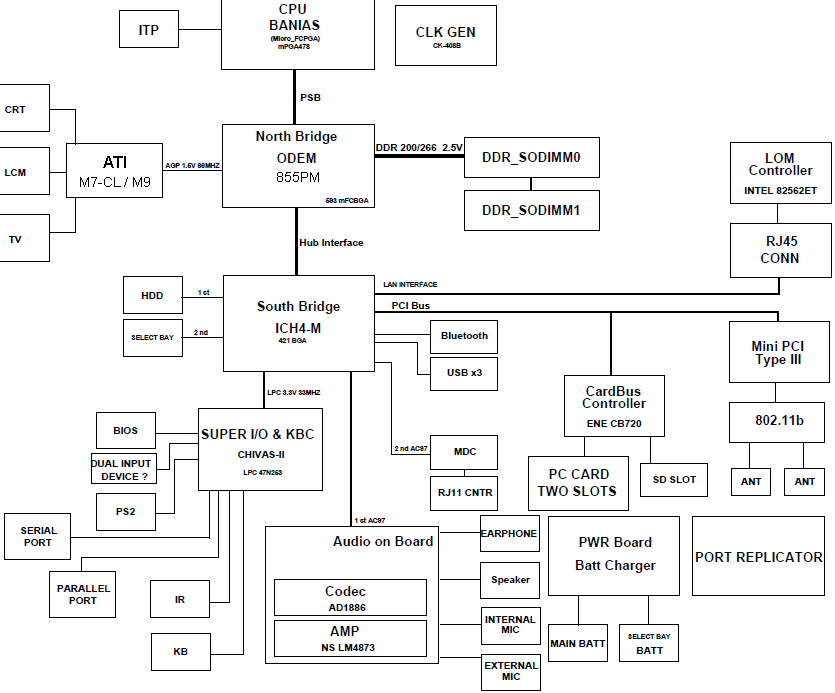

Toshiba Tecra S1, Laptop Motherboard Schematic diagram
Click on picture to enlarge |
*Power Flow Chart included Major components CPU : Intel Pentium M Thermal Sensor : Chipset : Intel 855PM ODEM // Intel ICH4-M Video: ATI M7 / ATI M9 Clock Generator :ICS_950810 Audio Codec : AD1886 Audio Amplifier :NS LM4873 KBC(Embeded Controller),SIO : CHIVAS-II LPC 47N253 LAN Controller :INTEL 82562ET Card BUS etc...:ENE CB720 <Power System> BQ24701 LM2729 MAX1715 SC1486 MAX1999 MAX1714B SC1565 SC1565 Total Pages :66 File type : PDF Language : English |
---|
