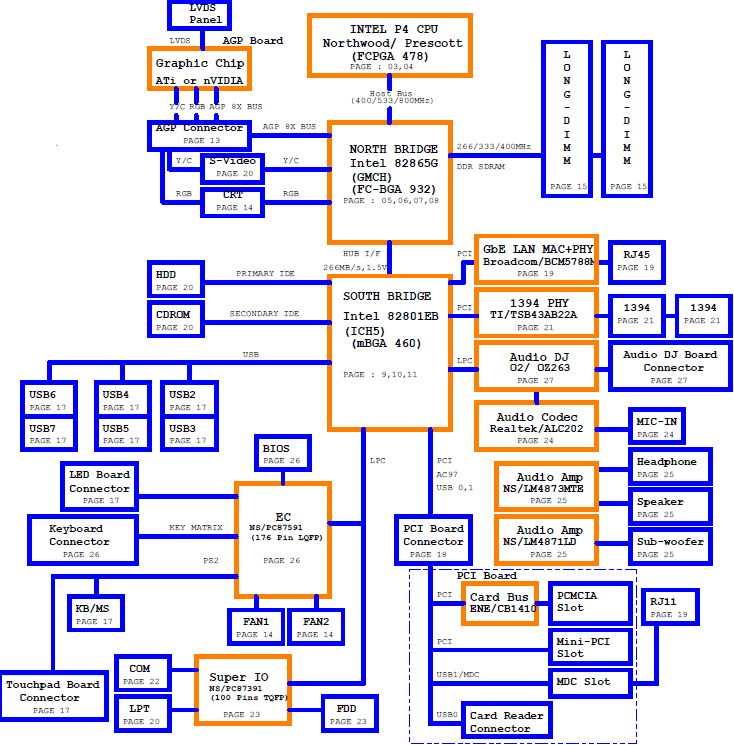

Acer Aspire 1710, Motherboard Schematic diagram

Click on picture to enlarge	Price: US $9.75 Major components CPU :INTEL P4 Northwood/ Prescott North Bridge :Intel 82865G (GMCH) South Bridge :Intel 82801EB (ICH5) VGA :ATI / nVIDIA Clock Generator :ICS952623 Thermal Sensor : Audio Codec :Realtek ALC202,OZ263 Audio Amplifier :LM4873MTE,LM4871LD KBC(Embeded Controller),SIO :PC87591,PC87391 LAN Controller :Broadcom BCM5788M CardBUS/1394/Cardreader Contr.:TSB43AB22A, ENE CB1410 <Power System> SC1470 SC1408IMS SC2643VX SC420 SC2595 SC1403 SC4215 Total Pages : 40 File type : PDF Language : English

Click on picture to enlarge

Price: US $9.75

Major components

CPU :INTEL P4 Northwood/ Prescott
North Bridge :Intel 82865G (GMCH)
South Bridge :Intel 82801EB (ICH5)
VGA :ATI / nVIDIA
Clock Generator :ICS952623
Thermal Sensor :
Audio Codec :Realtek ALC202,OZ263
Audio Amplifier :LM4873MTE,LM4871LD
KBC(Embeded Controller),SIO :PC87591,PC87391
LAN Controller :Broadcom BCM5788M
CardBUS/1394/Cardreader Contr.:TSB43AB22A, ENE CB1410

<Power System>

SC1470
SC1408IMS
SC2643VX
SC420
SC2595
SC1403
SC4215

Total Pages : 40
File type : PDF
Language : English

Updated: 17-02-2010
