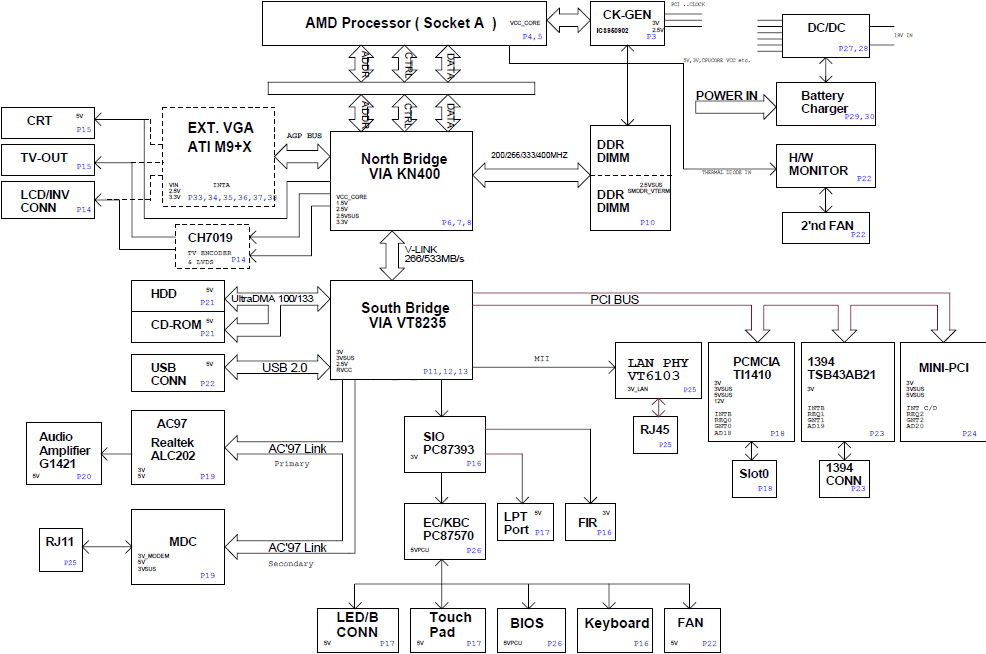

Acer Aspire 1450, Motherboard Schematic diagram

Click on picture to enlarge

Price: US $9.75

Major components

CPU : AMD Processor ( Socket A )
North Bridge : VIA KN400
South Bridge : VIA VT8235
VGA : UMA / EXT. VGA ATI M9+X
Clock Generator :ICS950902
Thermal Sensor :
Audio Codec :ALC202
Audio Amplifier :G1421
KBC(Embeded Controller),SIO :PC87570,PC87393
LAN Controller :VT6103
CardBUS/1394/Cardreader Contr.:TI1410,TSB43AB21


<Power System>

MAX1844
MAX1939
MAX1632




Total Pages : 38
File type : PDF
Language : English
Updated: 17-02-2010
