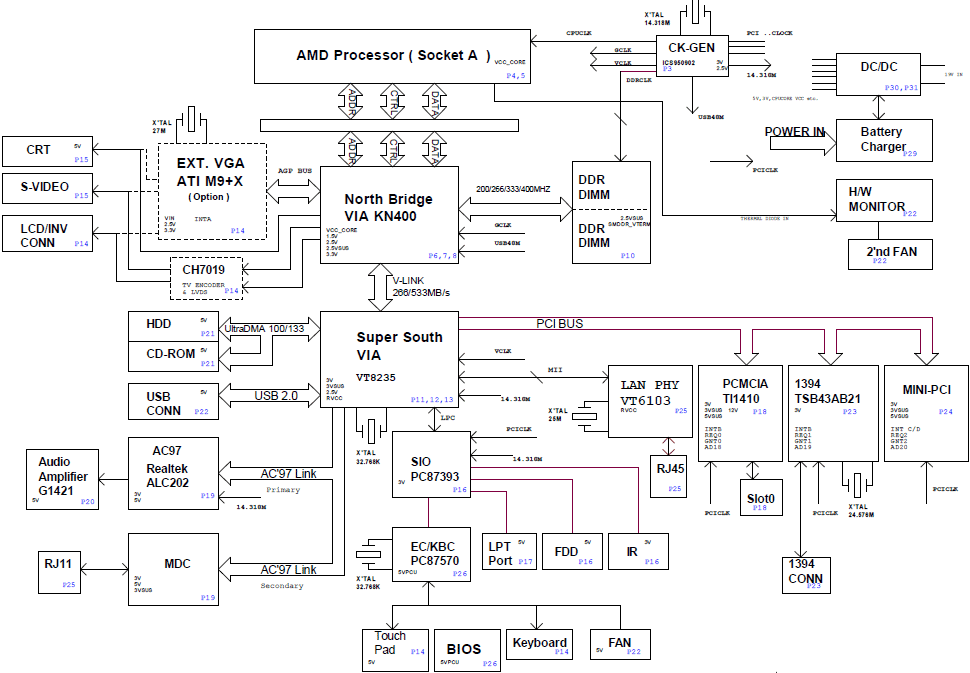

Acer Aspire 1350, Motherboard Schematic diagram

Click on picture to enlarge	Price: US $9.75 Major components CPU : AMD Processor ( Socket A ) North Bridge : VIA KN400 South Bridge : VIA VT8235 VGA : UMA / Discrete VGA card ATI M9+X Clock Generator : ICS950902 Thermal Sensor : Audio Codec : ALC202 Audio Amplifier : G1421 KBC(Embeded Controller),SIO :PC87570,PC87393 LAN Controller :VT6103 CardBUS/1394/Cardreader Contr.:TI1410,TSB43AB21 <Power System> SC1470 SC2595 MAX1632 ISL6223 Total Pages : 33 File type : PDF Language : English

Click on picture to enlarge

Price: US $9.75

Major components

CPU : AMD Processor ( Socket A )
North Bridge : VIA KN400
South Bridge : VIA VT8235
VGA : UMA / Discrete VGA card ATI M9+X
Clock Generator : ICS950902
Thermal Sensor :
Audio Codec : ALC202
Audio Amplifier : G1421
KBC(Embeded Controller),SIO :PC87570,PC87393
LAN Controller :VT6103
CardBUS/1394/Cardreader Contr.:TI1410,TSB43AB21

<Power System>

SC1470
SC2595
MAX1632
ISL6223

Total Pages : 33
File type : PDF
Language : English

Updated: 17-02-2010
