Acer Chromebook 314 CB314-2H, Motherboard BoardView file and Schematic diagram

Click on picture to enlarge

Price: US $20.00

What's included:

— Schematic Diagram for MB

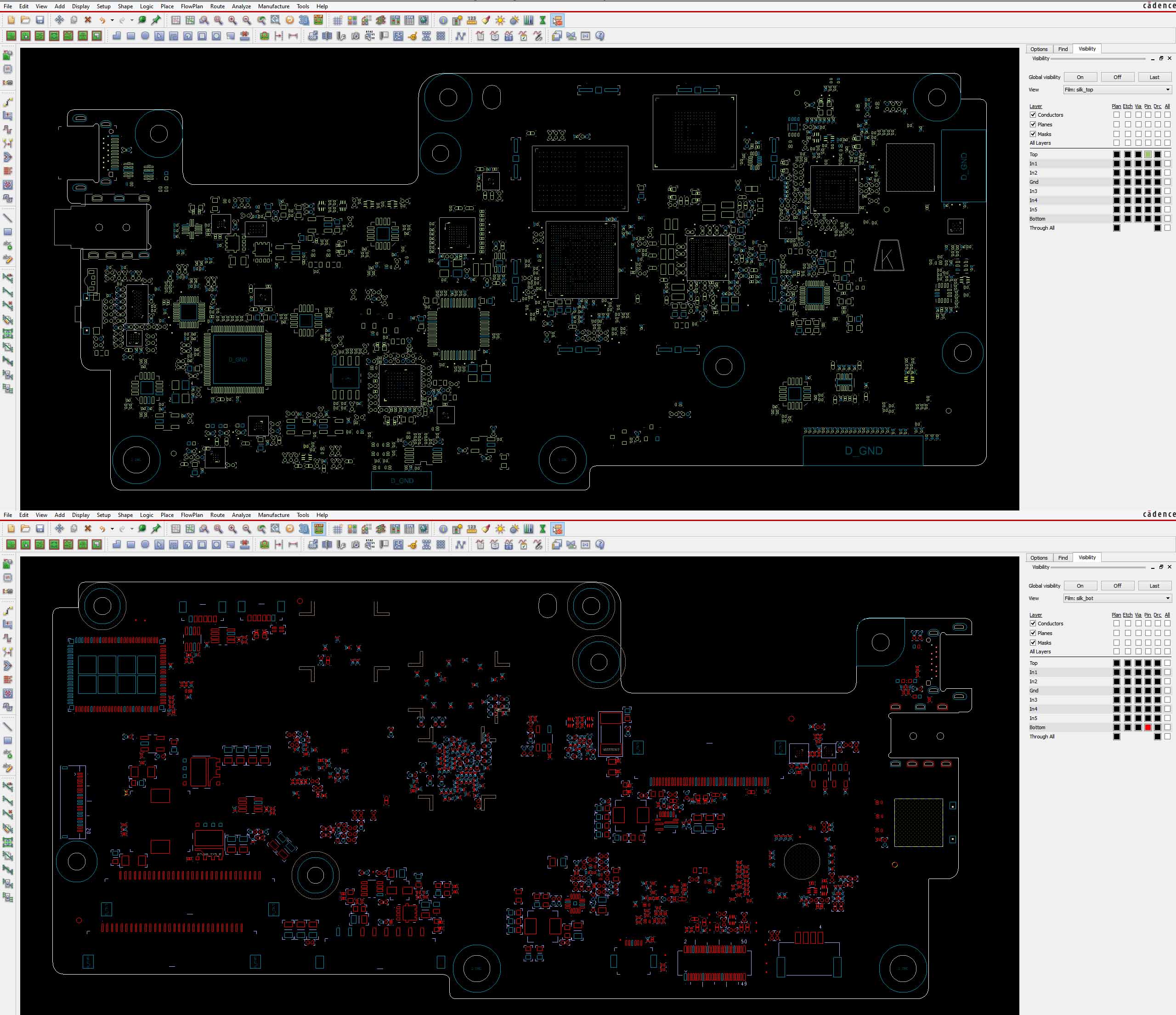

— BoardView file and BoardView software for MB + BoardView Software
— Reset Map

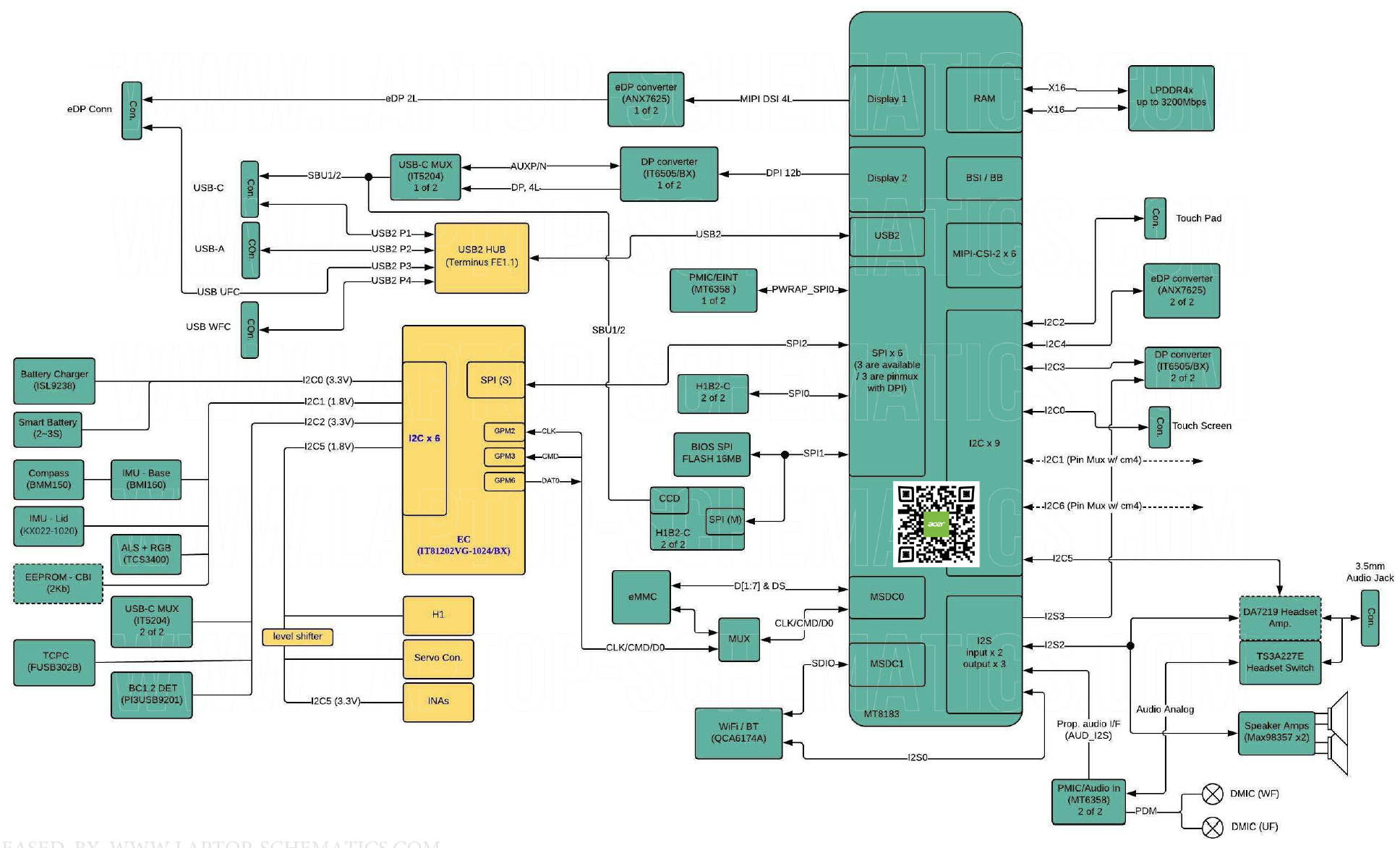

— Power Tree (Power Block Diagram / Power Distribution Diagram)
— I2C Map


Major components:


CPU: Mediatek MT8183 SoC + LPDDR4X
GPU: UMA
EC : IT81202VG-1024/BX


File types:

Schematic Diagram(s): PDF / Searchable
BoardView file(s) : .BRD (Allegro / Cadence Ver:17.2)
BIOS file : N/A
Language : English

Updated: 20-10-2021
