Compal OEM LA-7452P PLW00 , Motherboard Schematic diagram

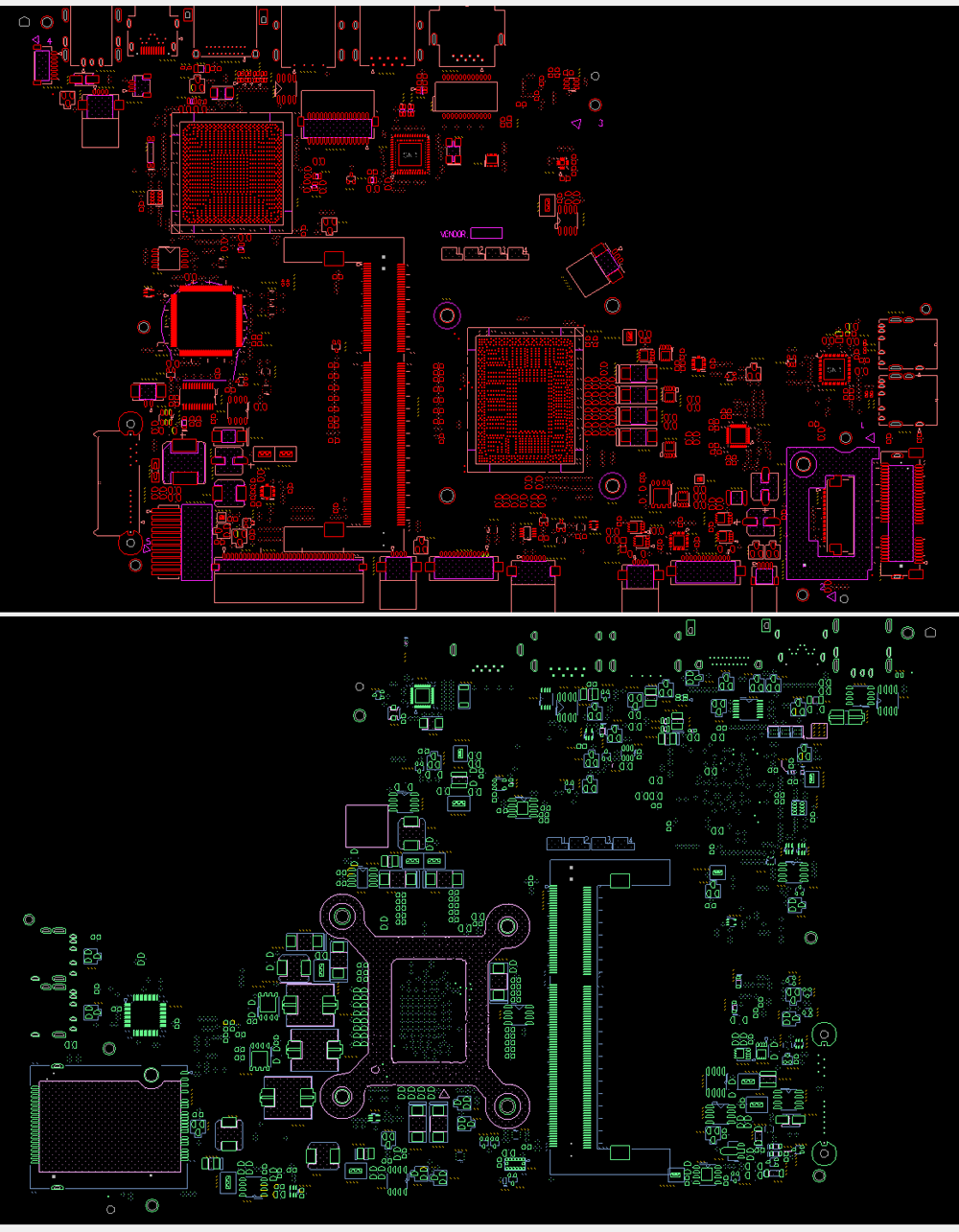

Click on picture to enlarge

Price: US $15.00

Motherboard p/n: PLW00 LA-7452P

Also included:

— BoardView file and BoardView software


Major components:

CPU/PCH/RAM: Intel Sandy Bridge + Cougar Point / DDR3
GPU: UMA
EC : ENE KB930

File type : PDF
Language : English

Updated: 15-07-2020
