Compal OEM LA-9104P VAW00 , motherboard Schematic diagram

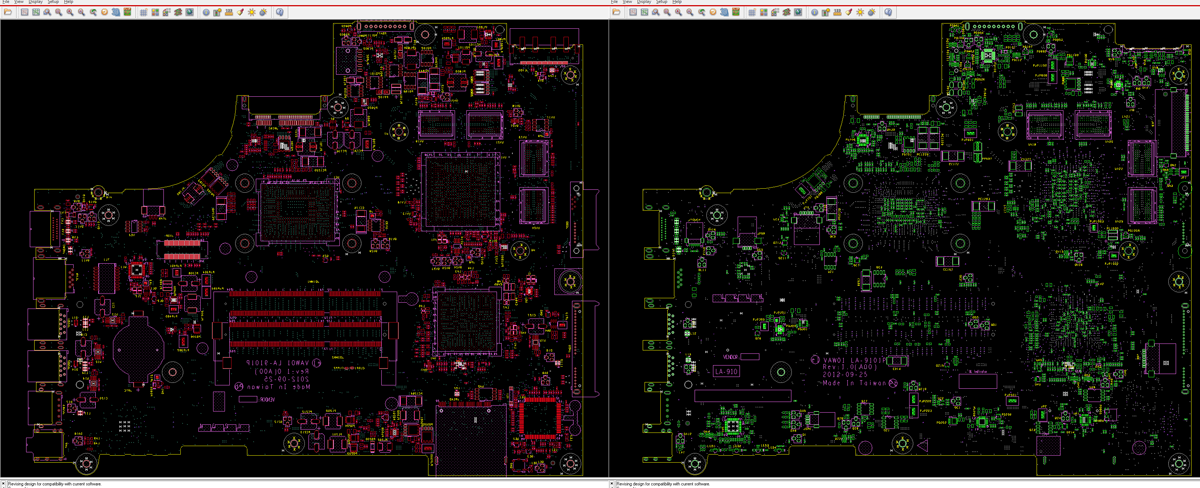

Click on picture to enlarge	Price: US $15.00 Also included: — BoardView file and BoardView software — Power Block Diagram Major components: CPU/HUB: Intel Ivy Bridge/ Panther Point + DDR3 GPU: UMA or DIS (AMD Thames-XT) EC: KB9012 File type : PDF Language : English

Click on picture to enlarge

Price: US $15.00

Also included:

— BoardView file and BoardView software

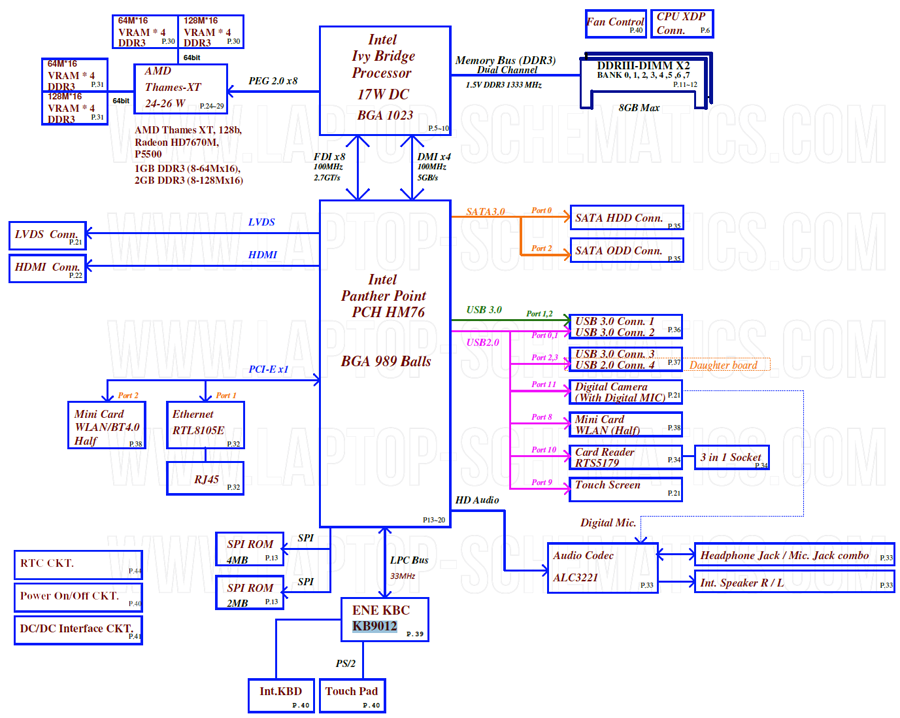

— Power Block Diagram

Major components:

CPU/HUB: Intel Ivy Bridge/ Panther Point + DDR3
GPU: UMA or DIS (AMD Thames-XT)
EC: KB9012

File type : PDF
Language : English

Updated: 11-06-2020
