Compal OEM LA-G711P EDI73 , motherboard Schematic diagram

Click on picture to enlarge

Price: US $20.00

Motherboard p/n: EDI73 LA-G711P

Also included:

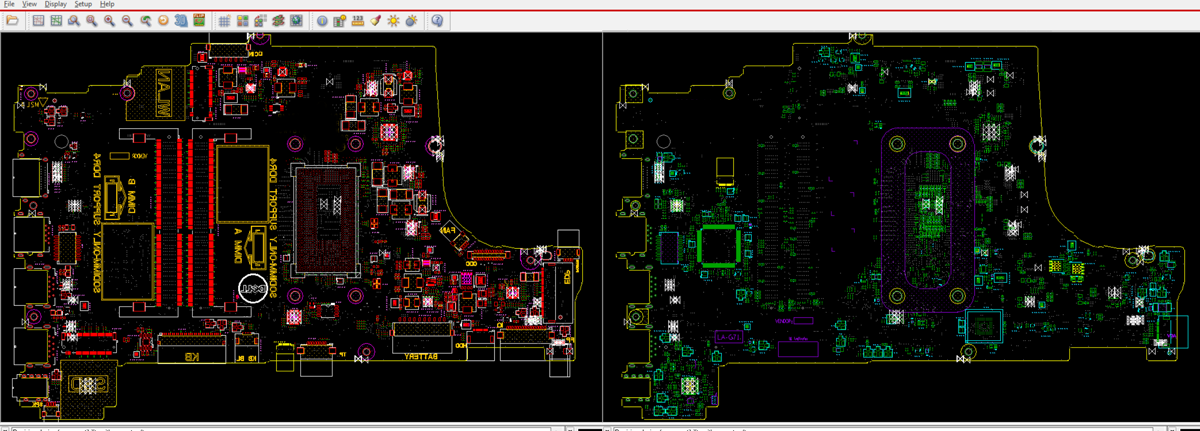

— BoardView file and BoardView software
— Power Block Diagram
— Power Sequence Block Diagram
— SMBus Block Diagram

Major components:

CPU: Intel WhiskeyLake-U/CannonLake-U + DDR4
GPU: DIS (AMD R520/R530 - R17M-M1-30/R17M-M2-50)
EC: MEC1416-NU

File type : PDF
Language : English
Updated: 10-06-2020
