Acer Aspire A315-53G, Motherboard BoardView file and Schematic diagram

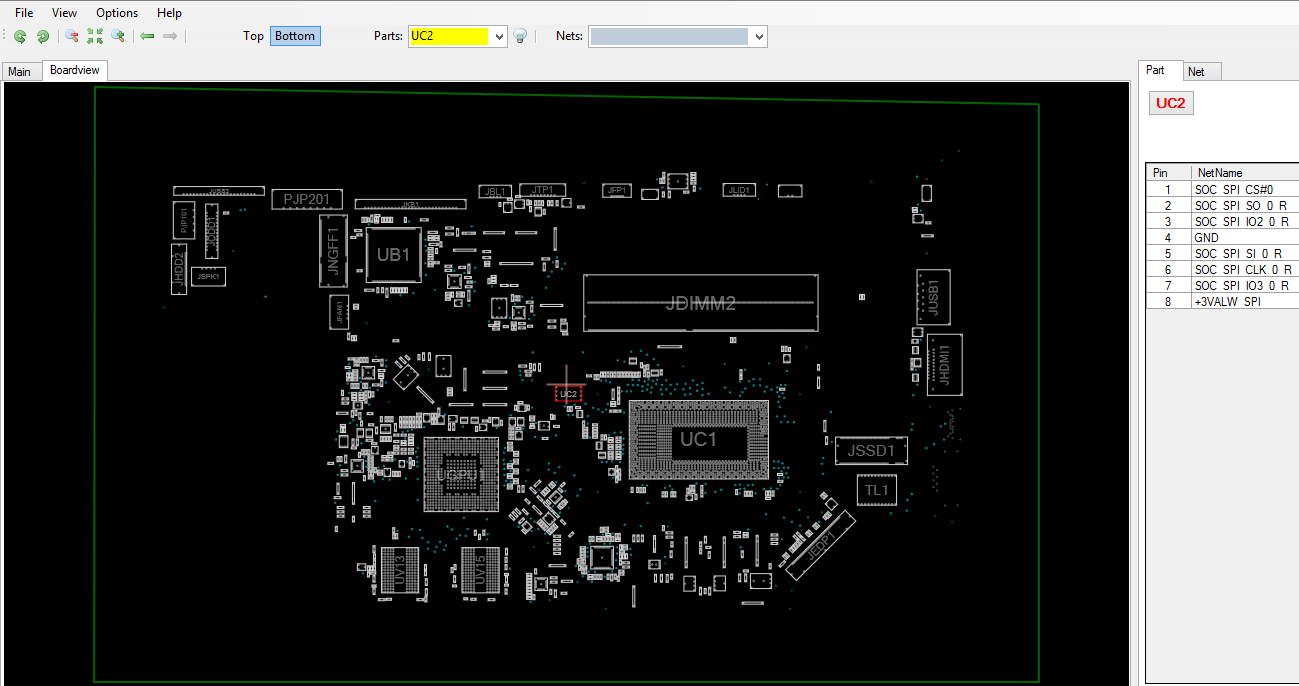

Click on picture to enlarge	Price: US $18.75 Also included: — BoardView files for Motherboard and Hall Sensor Board — 3 additional schematic diagrams for Hall Sensor, I/O and ODD boards — Power sequence timing diagram — Power distribution diagram — SMBUS Routing Table Major components: CPU: Intel KabyLake-U/R (U22/U42) + DDR4 GPU: (DIS) N16S-GTR / N17S-G1 + GDDR5 EC: KB9022 File type : PDF Language : English

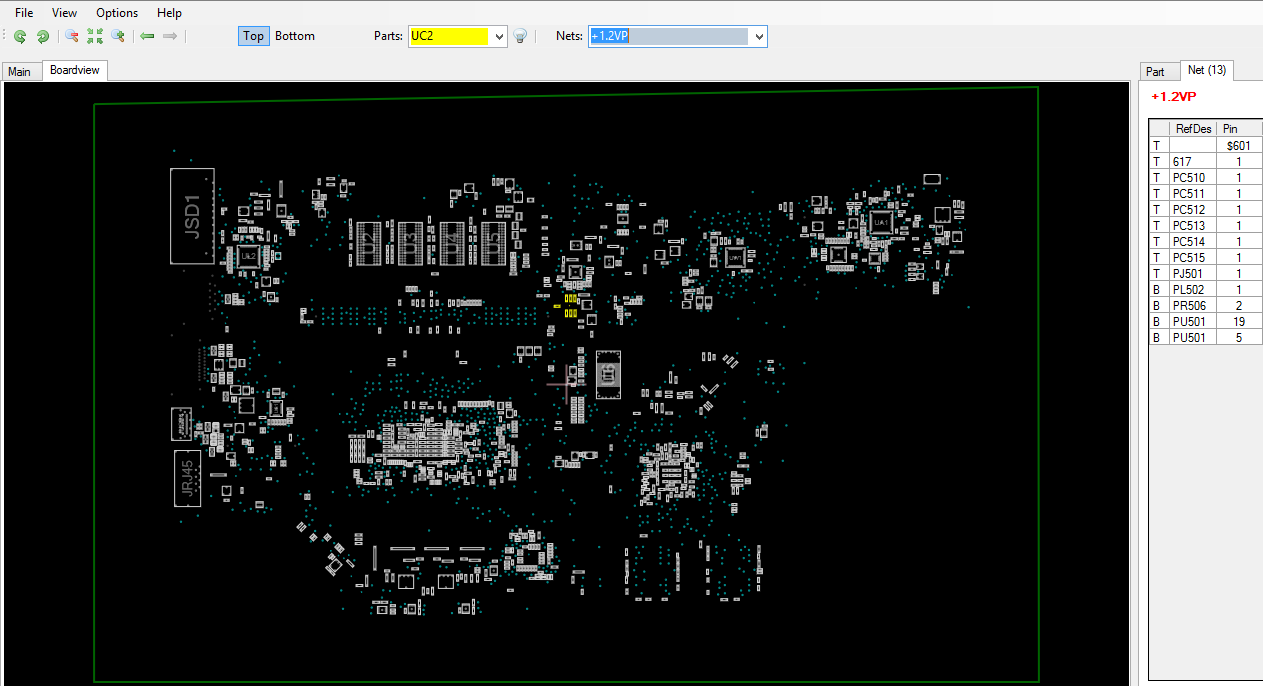

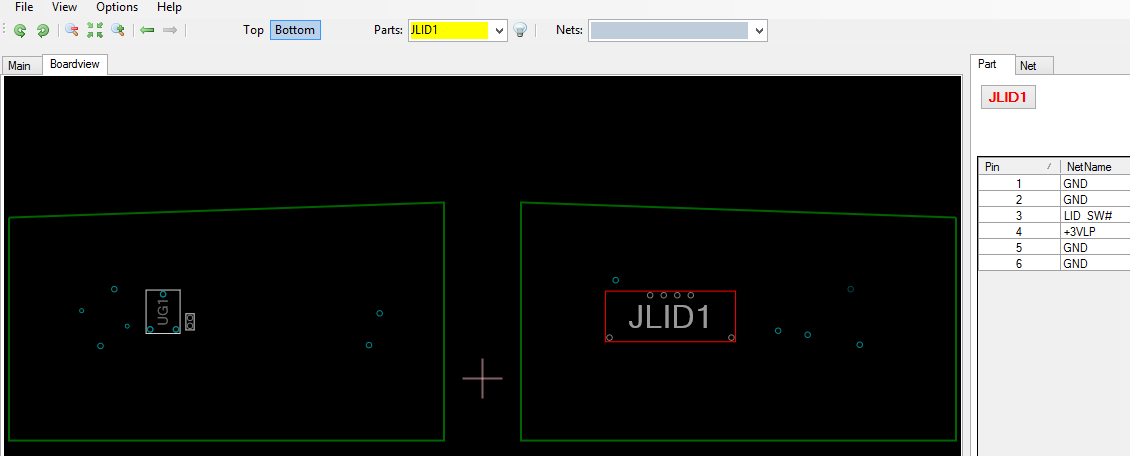

Click on picture to enlarge

Price: US $18.75

Also included:

— BoardView files for Motherboard and Hall Sensor Board
— 3 additional schematic diagrams for Hall Sensor, I/O and ODD boards
— Power sequence timing diagram
— Power distribution diagram

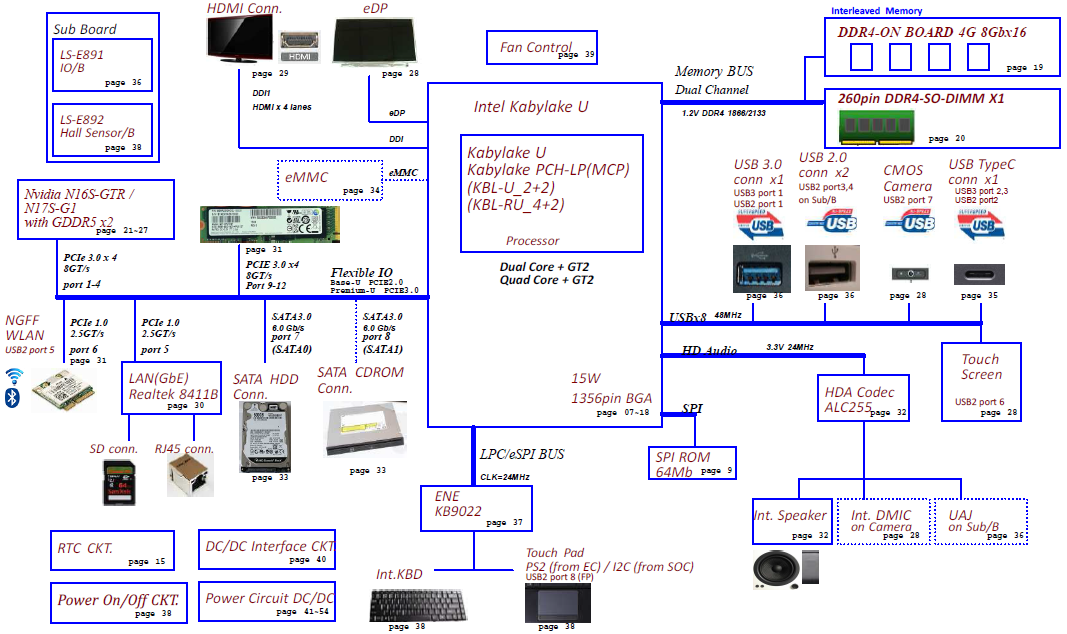

— SMBUS Routing Table

Major components:

CPU: Intel KabyLake-U/R (U22/U42) + DDR4
GPU: (DIS) N16S-GTR / N17S-G1 + GDDR5
EC: KB9022

File type : PDF
Language : English

Updated: 29-10-2021
