Lenovo V series laptops (Lenovo) V130-14IKB Laptop (Lenovo), Motherboard BoardView file and Schematic diagram

Click on picture to enlarge	Price: US $17.50 Also included —BoardView file and BoardView software —Power Sequence Timing Diagram —Power-Up/Down Sequence —System Power Block Diagram Major components: CPU Intel SKL-U / KBL-UR SoC + DDR4 GPU: Integrated (UMA) / AMD R17M "Radeon 530M" (DIS) EC: KB9022 File type : PDF (Searchable) Language : English

Click on picture to enlarge

Price: US $17.50

Also included

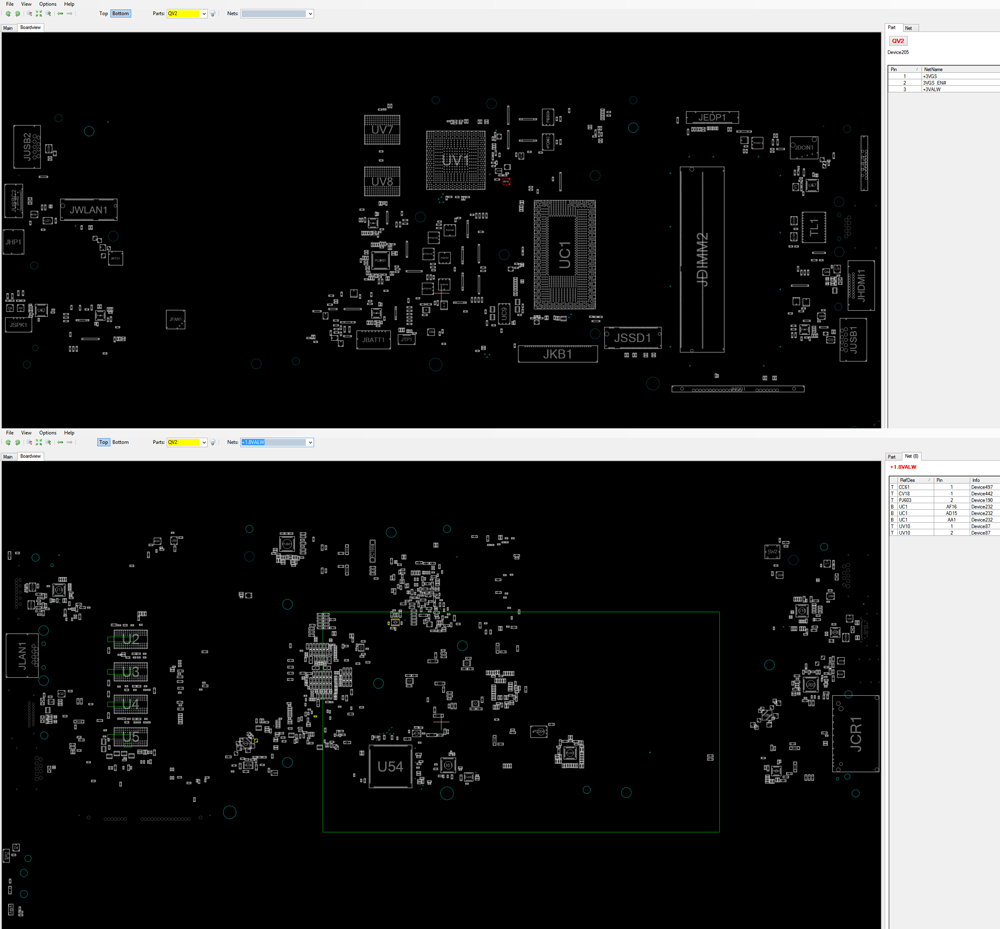

—BoardView file and BoardView software
—Power Sequence Timing Diagram
—Power-Up/Down Sequence
—System Power Block Diagram

Major components:

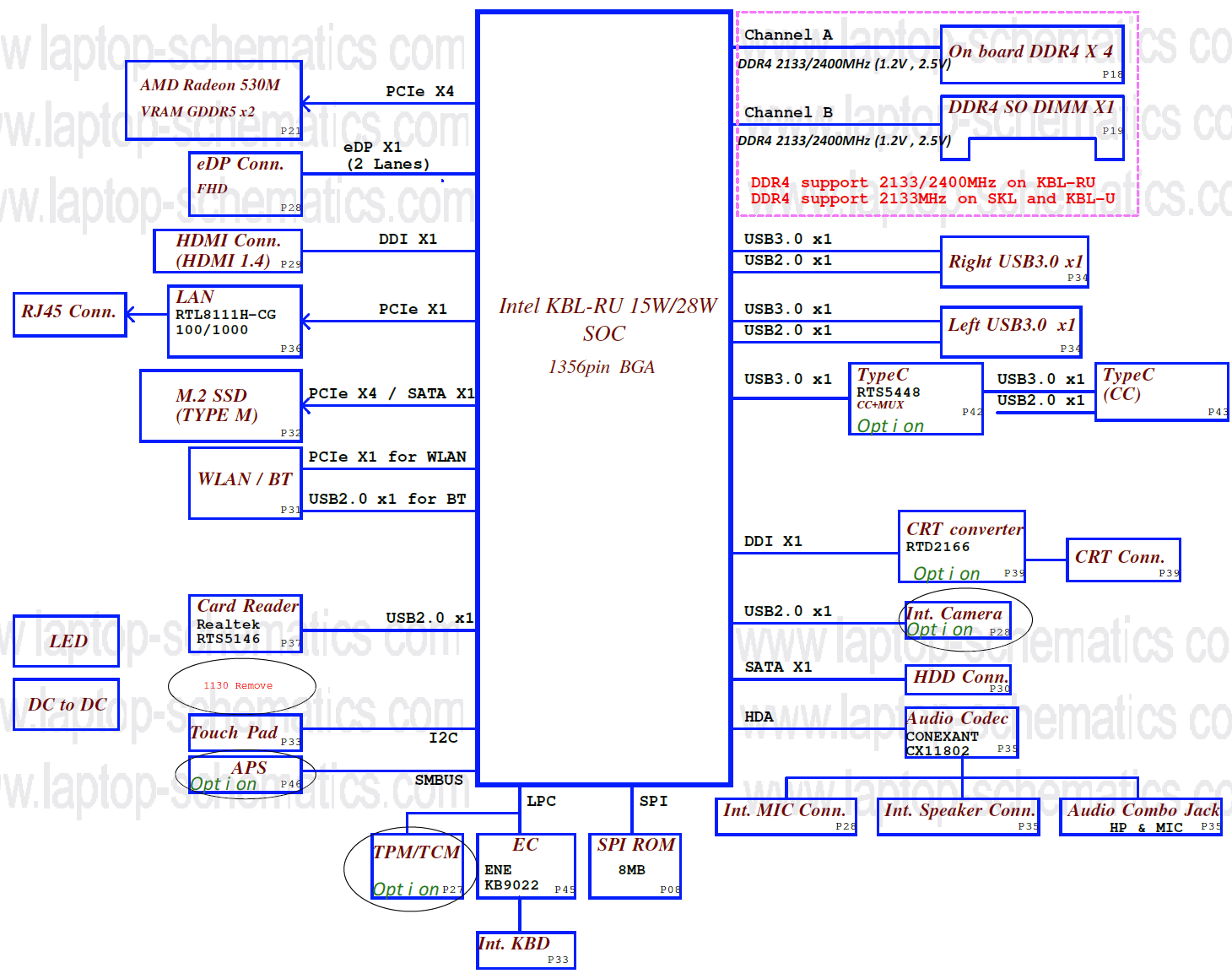

CPU Intel SKL-U / KBL-UR SoC + DDR4
GPU: Integrated (UMA) / AMD R17M "Radeon 530M" (DIS)
EC: KB9022

File type : PDF (Searchable)
Language : English

Updated: 26-08-2023
